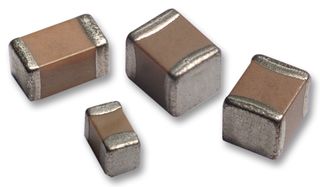

AVX 2220PC474KAT1A 多层陶瓷电容器, 表面贴装, 0.47 µF, ± 10%, X7R, 250 V, 2220 [5650 公制]
±10% 250V 陶瓷器 X7R 2220(5750 公制)
得捷:
CAP CER 0.47UF 250V X7R 2220
贸泽:
Multilayer Ceramic Capacitors MLCC - SMD/SMT 250V .47uF X7R 2220 10% Tol
e络盟:
AVX 2220PC474KAT1A 多层陶瓷电容器, 表面贴装, 0.47 µF, ± 10%, X7R, 250 V, 2220 [5650 公制]
艾睿:
Cap Ceramic 0.47uF 250V X7R 10% Pad SMD 2220 125°C T/R
安富利:
X7R formulations are called “temperature stable” ceramics and fall into EIA Class II materials. X7R is the most popular of these intermediate dielectric constant materials. Its temperature variation of capacitance is within ±15% from -55°C to +125°C. This capacitance change is non-linear.Capacitance for X7R varies under the influence of electrical operating conditions such as voltage and frequency.X7R dielectric chip usage covers the broad spectrum of industrial applications where known changes in capacitance due to applied voltages are acceptable.
Newark:
# AVX 2220PC474KAT1A SMD Multilayer Ceramic Capacitor, 2220 [5650 Metric], 0.47 µF, 250 V, ± 10%, X7R
额定电压DC 250 V
电容 0.47 µF
容差 ±10 %
电介质特性 X7R
工作温度Max 125 ℃
工作温度Min -55 ℃
额定电压 250 V
安装方式 Surface Mount
引脚数 2
封装 2220

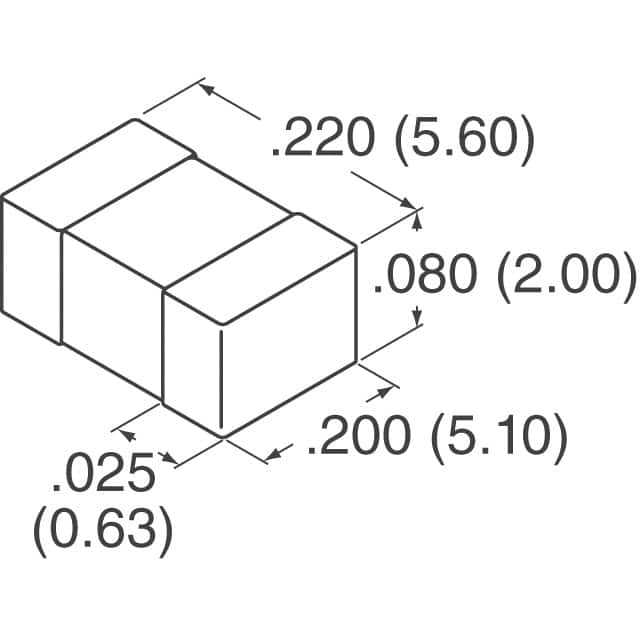

长度 5.6 mm
宽度 5.1 mm
高度 2 mm
封装 2220
材质 X7R/-55℃~+125℃
介质材料 Ceramic
工作温度 -55℃ ~ 125℃
产品生命周期 Active
包装方式 Cut Tape CT
最小包装 1000
制造应用 通用
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
REACH SVHC版本 2015/12/17
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
2220PC474KAT1A AVX 艾维克斯 | 当前型号 | 当前型号 |
1825PC474KAT1A 艾维克斯 | 完全替代 | 2220PC474KAT1A和1825PC474KAT1A的区别 |
2225PC474KAT1A 艾维克斯 | 完全替代 | 2220PC474KAT1A和2225PC474KAT1A的区别 |
1825PC474KAZ1A 艾维克斯 | 完全替代 | 2220PC474KAT1A和1825PC474KAZ1A的区别 |
