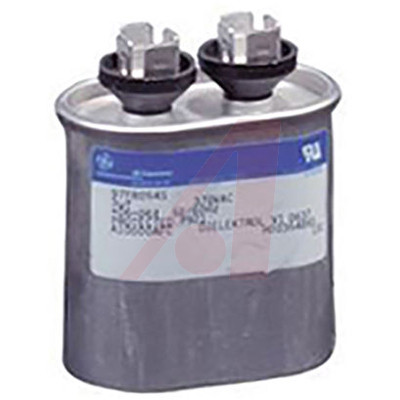

GENTEQ 27L6017 聚丙烯薄膜电容
This series of GEM III is designed specifically for applications such as AC filters where harmonic frequencies greater than 60 Hz are common. Application Data is provided on the datasheet that gives the Equivalent Series Resistance ESR for these units. This allows the user to calculate the losses for each design / application and to ensure that they are kept within the permissible limits.
**Specifications. Available Capacitance Range:** 2 to 120 μF. **Tolerance:** ±3%** or ±6%*. **Available Voltage Range:** 240 to 660 VAC. **Operating Temperature:** –40°C to +70°C* or –40°C to +90°C**. **Storage Temperature:** –40°C to +90°C. **Frequency:** 50/60 Hz. **Operating Life:** 60,000 hours. **Standard:** EIA-456 Compliant.
* Metallized Film Capacitor
* Pressure Sensitive Interrupter PSI
