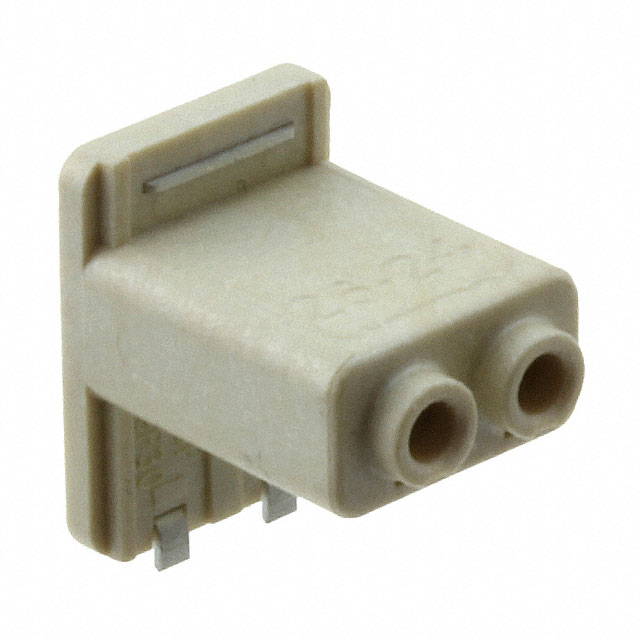

TE CONNECTIVITY 2213189-2 连接器, 反向 刺入式, 2路, 26-24AWG
固态照明 2 位置 插座,Poke-In 线 板至电缆/导线 0.130"(3.30mm) 焊接
得捷:
CONN SSL RCPT 2POS 3.3MM SOLDER
贸泽:
照明连接器 2P 3A 400V 26-24 AWG ITB POKE-IN
e络盟:
连接器, 反向 刺入式, 2路, 26-24AWG
艾睿:
Safety is an important concern when designing electronic devices. TE Connectivity&s;s poke-in inverted through board 2213189-2 header connector helps protect your equipment from accidental shortages. This HDR connector&s;s 2 contacts that are made out of copper alloy and plated with tin over nickel. This is a 1-row connector. It has a straight body orientation. It has a maximum voltage rating of 400 VDC|400VAC. It has a header type gender. Its pitch is 3.3 mm. This device has a maximum current rating of 3 A/contact. Tape and reel packaging will encase the product during shipment, ensuring safe delivery and enabling quick mounting of components. It uses the solder termination method. This connector has an operating temperature of -40 to 130 °C. 2213189-2 is housed in natural liquid crystal polymer. This product is 7.5 mm long and 10.92 mm.
安富利:
Conn Wire to Board HDR 2 POS 3.3mm Solder ST SMD T/R
富昌:
LED Interconnects, Assembly, IPI Connector 26-24GA w/o cap
Verical:
Conn Poke-In Inverted Through Board HDR 2 POS 3.3mm Solder ST SMD Reel
Newark:
# TE CONNECTIVITY 2213189-2 Connector, Card Edge, Inverted, 2 Contacts, Header, 3.3 mm, Surface Mount
MASTER:
Assembly Connector 26-24GA w/o cap
Online Components:
Assembly, IPI Connector 26-24GA w/o cap
Electro Sonic:
Assembly, IPI Connector 26-24GA w/o cap
触点数 2
极性 Male
线规 24AWG ~ 26AWG
触点电镀 Tin, Tin over Nickel, Tin Lead
额定电流 2 A
排数 1
方向 Vertical
易燃性等级 UL 94 V-0
针脚数 2
额定电流Max 3A/触头
安装方式 Surface Mount
引脚数 2
封装 SMD
长度 7.5 mm
宽度 10.67 mm
高度 10.25 mm
封装 SMD
外壳颜色 Natural
颜色 Natural
触点材质 Copper Alloy
材质 Thermoplastic
工作温度 -40℃ ~ 130℃
外壳材质 Thermoplastic
产品生命周期 Active
包装方式 Tape & Reel TR
RoHS标准 RoHS Compliant
含铅标准 Lead Free
ELV标准 Compliant
ECCN代码 EAR99
HTS代码 8536698000
