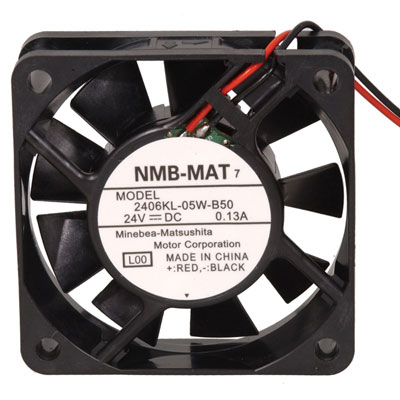

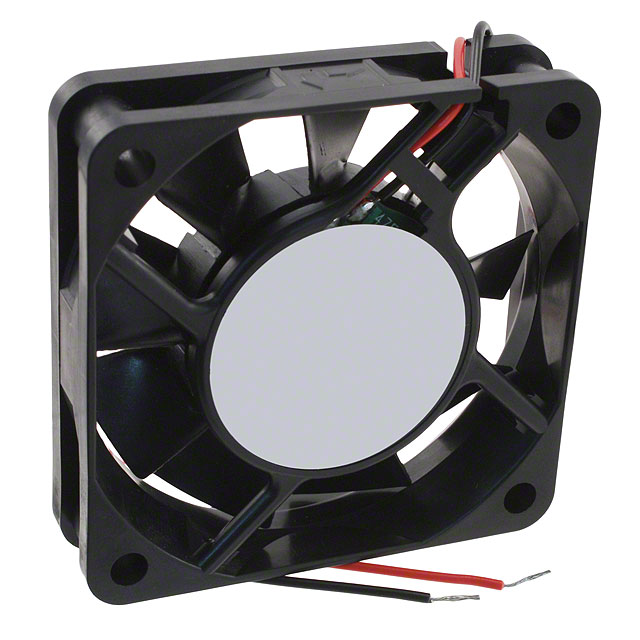

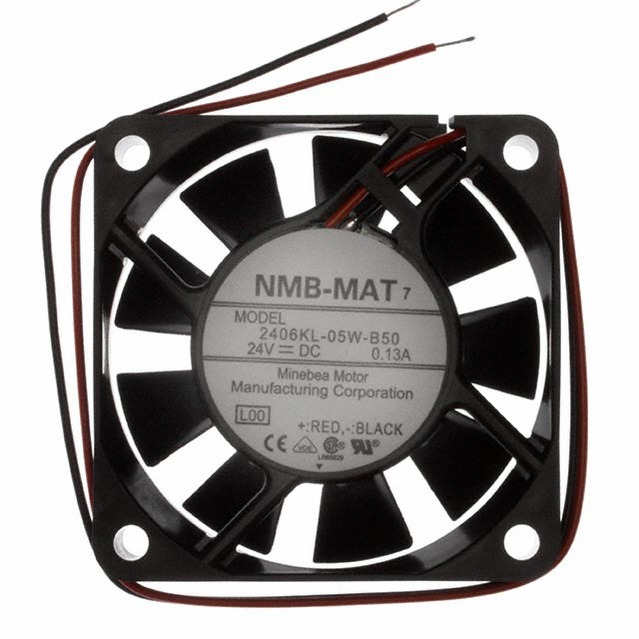

2406KL-05W-B50-L00

NMB TECHNOLOGIES  2406KL-05W-B50-L00  轴流风扇, 管轴式, 方形, 滚珠, 2406KL系列, 24 VDC, 60 mm, 15 mm, 18.3 cu.ft/min, 0.52 m³/min

The is a 24VDC Axial Fan with ball bearing and wire leaded power connection. This K-series axial fan comes with plastic black casing and impeller. UL1007, 26AWG red + and black - lead wire. Clockwise direction of rotation, air out over struts. Brushless type DCM motor function, standard special control function and standard model ribbed mounting. Can be an integral part of a cooling solution for heat-generating purpose.

.

UL94V-0 Flammability rating

.

4600RPM Speed rating

.

-10 to 60°C Operating temperature range

.

2.4W Rated power

.

0.2"-H2O Static pressure

.

10MR or over with a DC500V Megger insulation resistance

.

Auto restart

.

Polarity protection
