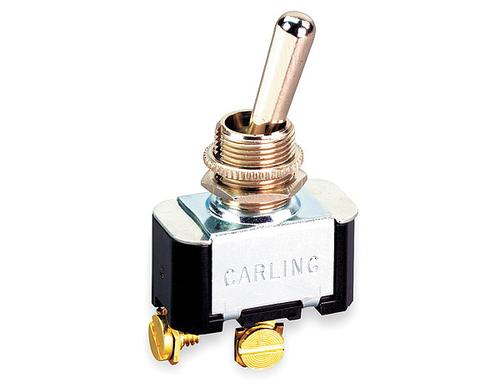

CARLING TECHNOLOGIES 2FA54-73 拨动开关
The A-Series toggle switches contain a slow-make, slow-break contact mechanism.
贸泽:
拨动开关 SPST ON-OFF
e络盟:
开关, 拨动, SPST, 15A, 250V
Allied Electronics:
Switch; Toggle; SPST; On None Off; Screw terminals
安富利:
Switch Toggle ON None OFF SPST Bat Toggle Screw 15A 250VAC 559.27VA Panel Mount with Threads
Newark:
Toggle Switch, SPST, Non Illuminated, On-None-Off, F Series, 10 A
MASTER:
Switch Toggle ON None OFF SPST Bat Lever Screw 15A 250VAC 559.27VA Panel Mount with Threads
Electro Sonic:
Switch Toggle ON None OFF SPST Bat Lever Screw 15A 250VAC 559.27VA Panel Mount with Threads
触点电镀 Nickel
接触器类型 Standard
额定电流 15 A
绝缘电阻 ≥100 MΩ
方向 Vertical
触点类型 SPST
针脚数 2
额定电压 125 VAC
额定电压AC Max 250 V
安装方式 Screw, PCB
长度 28.8 mm
宽度 16.1 mm
触点材质 Silver
工作温度 -17.8℃ ~ 65.6℃
产品生命周期 Active
制造应用 Industrial, Defence, Military & Aerospace, Automation & Process Control
RoHS标准 RoHS Compliant
含铅标准 Lead Free
军工级 Yes
ECCN代码 EAR99
| 型号/品牌 | 代替类型 | 替代型号对比 |
|---|---|---|
2FA54-73 Carling Technologies 嘉灵科技 | 当前型号 | 当前型号 |
7546K36 伊顿巴斯曼 | 类似代替 | 2FA54-73和7546K36的区别 |
SPC21159 Multicomp | 类似代替 | 2FA54-73和SPC21159的区别 |
11TS95-2 霍尼韦尔 | 功能相似 | 2FA54-73和11TS95-2的区别 |
