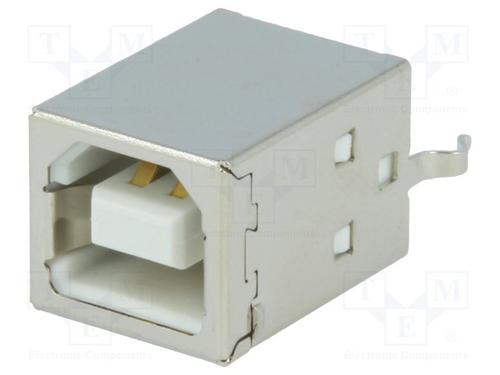

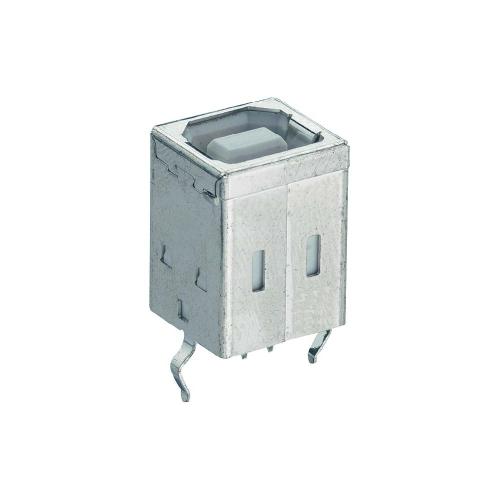

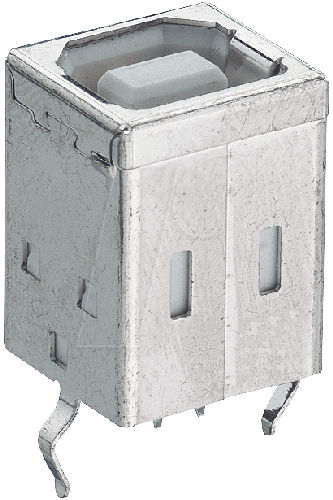

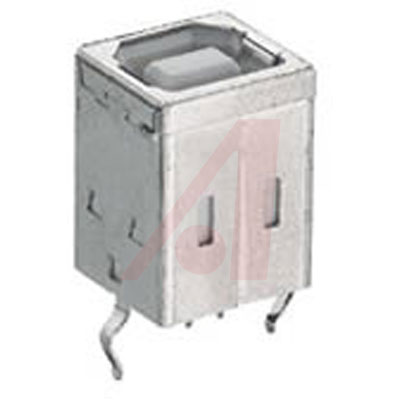

LUMBERG 2411 01 连接器, USB, USB B, USB 2.0, 插座, 4 路, 通孔安装, 垂直
The from is a standard USB 2.0 type B chassis socket with vertical mounting on printed circuit board. USB 2.0 interface supports data transfer rate of up to 480Mbit/s.
- .
- Polybutylene terephthalate glass fibre reinforced body
- .
- Rated current is less than or equal to 1A
- .
- Rated voltage is 30VAC
- .
- Contact resistance is 30mohm
- .
- Mating with USB plug 2431
- .
- Temperature range from -55 °C to 85 °C
- .
- Insertion force
- .
- Withdrawal force >= 10N
- .
- Bronze with gold plated contacts
触点数 4
极性 Female
触点电镀 Gold
额定电压AC 30.0 V
额定电流 1.00 A
绝缘电阻 100 MΩ
方向 Vertical
针脚数 4
拔插次数 1500
额定电流Max 1 A
工作温度Max 85 ℃
工作温度Min -55 ℃
额定电压Max 30 VAC
接触电阻Max 30 mΩ
安装方式 Through Hole
引脚数 4
高度 16.1 mm
外壳颜色 White
触点材质 Brass
包装方式 Tray
制造应用 Portable Devices, 通信与网络, Industrial, Communications & Networking, 便携式器材, 工业
RoHS标准 RoHS Compliant
REACH SVHC标准 No SVHC
REACH SVHC版本 2015/12/17
ECCN代码 EAR99
| 型号/品牌 | 代替类型 | 替代型号对比 |
|---|---|---|
2411 01 Lumberg 隆堡电子 | 当前型号 | 当前型号 |
MC32597 Multicomp | 功能相似 | 2411 01和MC32597的区别 |
