Conn Power SKT 4POS 5mm Solder ST Thru-Hole 4 Terminal 1Port
4 位置 接头 0.197"(5.00mm) 通孔 镀金
得捷:
CONN HDR 4POS 0.197 GOLD PCB
贸泽:
Headers & Wire Housings 4P SOCKET HEADER GLD METRIMATE
艾睿:

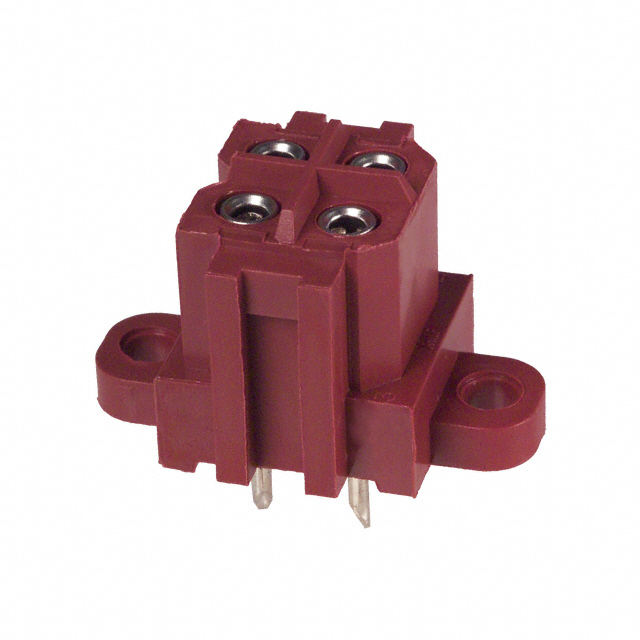

Use this 207496-9 power connector from TE Connectivity to connect a power supply to a circuit. This SKT connector&s;s 4 contacts that are made out of phosphor bronze and plated with gold over nickel. It has a straight body orientation. It has a maximum voltage rating of 600 VDC|600VAC. This connector has a single port. Its pitch is 5 mm. It has a socket type gender. 207496-9 is housed in nylon. This device has a maximum current rating of 14 A/contact. This product is 15.49 mm long, 14.35 mm tall and 22.61 mm deep. This power connector has a minimum operating temperature of -55 °C and a maximum of 130 °C. Its 4 terminals use the solder termination method.
安富利:
Conn Power SKT 4 POS 5mm Solder ST Thru-Hole 4 Terminal 1 Port
Chip1Stop:
Conn Power SKT 4 POS 5mm Solder ST Thru-Hole 4 Terminal 1 Port
Verical:
Conn Rectangular SKT 9 POS 5mm Solder ST Thru-Hole Box
Powell:
Metrimate Connectors
触点数 4
极性 Female
触点电镀 Tin, Gold
额定电流 14.0 A
排数 2
方向 Vertical
易燃性等级 UL 94 V-0
针脚数 4
额定电流Max 14A/触头
工作温度Max 130 ℃
工作温度Min -55 ℃
额定电压 600 V
安装方式 Through Hole
引脚间距 5.00 mm
长度 15.49 mm
宽度 22.61 mm
高度 14.35 mm
引脚间距 5.00 mm
外壳颜色 Red
颜色 Red
触点材质 Phosphor Bronze
工作温度 -55℃ ~ 130℃
外壳材质 Nylon
产品生命周期 Active
包装方式 Bulk
制造应用 -
RoHS标准 RoHS Compliant
含铅标准 Lead Free
ELV标准 Compliant
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
207496-9 TE Connectivity 泰科 | 当前型号 | 当前型号 |
207496-3 泰科 | 功能相似 | 207496-9和207496-3的区别 |
