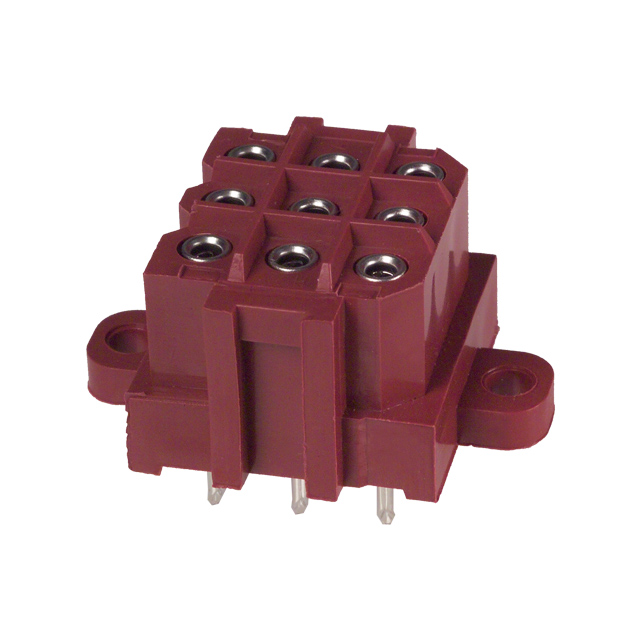

集管和线壳 SKT HDR ASSY 9 POSN
9 位置 接头 0.197"(5.00mm) 通孔 镀金
得捷:
CONN HDR 9POS 0.197 GOLD PCB
贸泽:
集管和线壳 SKT HDR ASSY 9 POSN
艾睿:
The 207526-3 power connector from TE Connectivity is perfect for powering your circuit because it comes with the least amount of losses. This SKT connector&s;s 9 contacts that are made out of phosphor bronze and plated with gold over nickel. It has a straight body orientation. It has a socket type gender. This connector has a single port. Its pitch is 5 mm. It has a maximum voltage rating of 600 VDC|600VAC. This device has a maximum current rating of 14 A/contact. 207526-3 is housed in nylon. The component will be shipped in tray format. This power connector has an operating temperature range of -55 °C to 130 °C. Its 9 terminals use the solder termination method. This product is 21.34 mm long, 14.35 mm tall and 27.69 mm deep.
Chip1Stop:
Conn Power SKT 9 POS 5mm Solder ST Thru-Hole 9 Terminal 1 Port
Verical:
Conn Rectangular SKT 9 POS 5mm Solder ST Thru-Hole 9 Terminal 1 Port Tray
MASTER:
SKT HDR ASSY,9 POSN,METRIMATE
Powell:
Metrimate Connectors
Online Components:
SKT HDR ASSY,9 POSN,METRIMATE
Electro Sonic:
SKT HDR ASSY,9 POSN,METRIMATE
触点数 9
极性 Female
触点电镀 Tin Lead, Gold
额定电流 7.5 A
排数 3
方向 Vertical
易燃性等级 UL 94 V-0
针脚数 9
额定电流Max 14A/触头
工作温度Max 130 ℃
工作温度Min -55 ℃
额定电压 600 V
安装方式 Through Hole
引脚间距 5.00 mm
长度 21.34 mm
宽度 27.69 mm
高度 14.35 mm
引脚间距 5.00 mm
外壳颜色 Red
颜色 Red
触点材质 Phosphor Bronze
工作温度 -55℃ ~ 130℃
外壳材质 Nylon
产品生命周期 Superseded
包装方式 Tray
制造应用 -
RoHS标准 Non-Compliant
含铅标准 Contains Lead
ELV标准 Non-Compliant
ECCN代码 EAR99
HTS代码 8536694040
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
207526-3 TE Connectivity 泰科 | 当前型号 | 当前型号 |
207526-9 泰科 | 功能相似 | 207526-3和207526-9的区别 |
