TE CONNECTIVITY 2013978-2 连接器, HDMI, 母, 19触点, 整卷

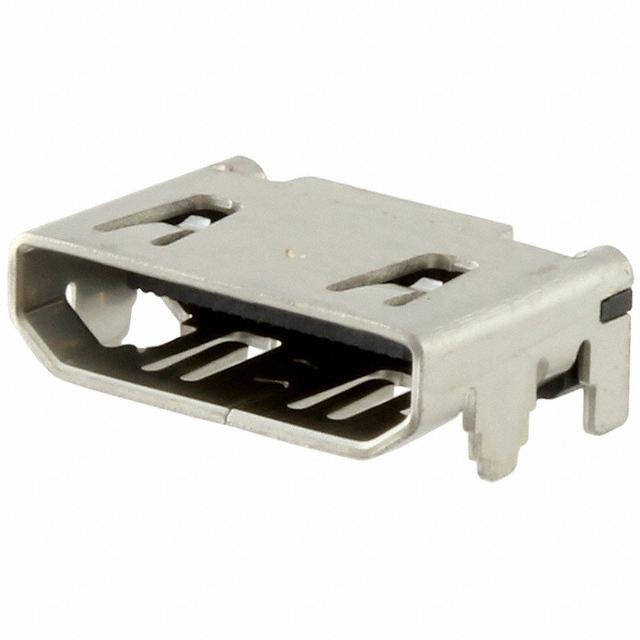

The is a 19-position 1-port right angle HDMI type-C Receptacle Assembly with 0.1µm gold-plated contacts, tin over plated shell and surface-mount contact termination. The HDMI technology supports standard, enhanced or high-definition video, plus multi-channel audio on a single cable. Easy-to-use friction lock design provides secure electrical contact and smooth cable insertion/extraction.
- .
- Simple user-friendly connector
- .
- Replaces existing audio and digital cabling in one assembly
- .
- Full shielding for ESD protection and lead-free process available
触点数 19
极性 Male
触点电镀 Gold
额定电压DC 40.0 V
额定电流 500 mA
针脚数 19
拔插次数 5000
额定电流Max 0.5A/触头
工作温度Max 70 ℃
工作温度Min -25 ℃
额定电压 40 VAC
安装方式 Surface Mount
封装 ThroughHole
长度 12.9 mm
宽度 7.7 mm
高度 3.45 mm
封装 ThroughHole
外壳颜色 Black
触点材质 Copper
工作温度 -25℃ ~ 70℃
产品生命周期 Active
包装方式 Tape & Reel TR
制造应用 Multimedia, Signal, 多媒体, Consumer Electronics, 计算机和计算机周边, Computers & Computer Peripherals, 消费电子产品
RoHS标准 RoHS Compliant
含铅标准 Lead Free
ELV标准 Compliant
REACH SVHC标准 No SVHC
REACH SVHC版本 2014/06/16
ECCN代码 EAR99
HTS代码 8536694040;8536699099
