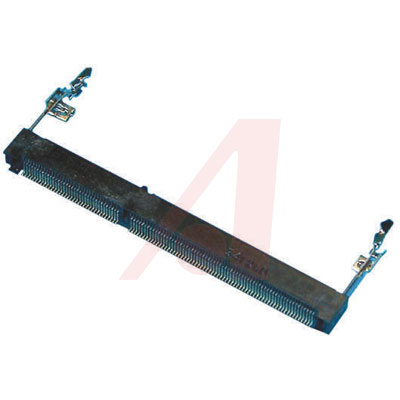

TE CONNECTIVITY 2013022-1 存储器插槽, SODIMM插座, 204 触点, 铜合金, 镀金触芯
204 位置 SODIMM DDR3 SDRAM 个插口 表面贴装,25° 角
得捷:
CONN SKT SODIMM 204POS SMD
立创商城:
P数:204
艾睿:
This ddr3 so dimm socket 2013022-1 connector socket from TE Connectivity will allow you to interface multiple cables. This SKT connector&s;s 204 contacts that are made out of copper alloy and plated with gold over nickel. It has a socket type gender. This is a 2-row connector. It has a right angle body orientation. Its pitch is 0.6 mm. 2013022-1 is housed in thermoplastic. This product is 71.5 mm long, 4 mm tall and 26 mm deep. It uses the solder termination method. It is insulated with thermoplastic.
Allied Electronics:
0.6mm Pitch 204 Way, Right Angle SMT DDR3 DIMM Socket , 1.5 V
安富利:
Conn DIMM Socket SKT 204 POS 0.6mm Solder RA SMD Tray
Chip1Stop:
Conn DDR3 SO DIMM Socket SKT 204 POS 0.6mm Solder RA SMD Tray
Verical:
Conn DDR3 SO DIMM Socket SKT 204 POS 0.6mm Solder RA SMD Tray
Newark:
# TE CONNECTIVITY 2013022-1 Memory Socket, SODIMM Socket, 204 Contacts, Copper Alloy, Gold Plated Contacts
MASTER:
DDR3 SODIMM SOCKET 0.6mm PITCH 204POS 4mm HEIGHT STANDARD TYPE
Powell:
DDR3 / DDR2 / DDR Connectors SEMI-HARD TRAY DDR3 204P 4H STD
Online Components:
SEMI-HARD TRAY DDR3 204P 4H STD
Electro Sonic:
SEMI-HARD TRAY DDR3 204P 4H STD
触点数 204
触点电镀 Gold Flash
额定电流 0.5A/触头
排数 2
易燃性等级 UL 94 V-0
针脚数 204
额定电流Max 0.5A/触头
工作温度Max 85 ℃
工作温度Min -55 ℃
额定电压Max 1.5 V
额定电压 1.5 V
安装方式 Surface Mount
封装 204
长度 71.5 mm
宽度 26 mm
高度 4 mm
封装 204
外壳颜色 Black
颜色 Black
触点材质 Copper Alloy
外壳材质 Thermoplastic
产品生命周期 Active
包装方式 Tray
制造应用 Computers & Computer Peripherals, Power, 消费电子产品, Consumer Electronics, 计算机和计算机周边
RoHS标准 RoHS Compliant
含铅标准 Lead Free
ELV标准 Compliant
REACH SVHC标准 No SVHC
REACH SVHC版本 2015/06/15
ECCN代码 EAR99
HTS代码 8536694040
