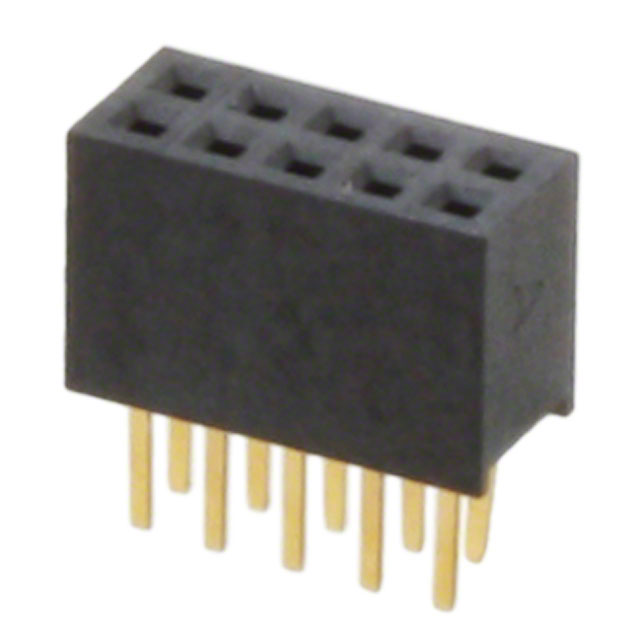

AMPHENOL FCI 20021311-00010T4LF 板至板连接, 垂直, Minitek127 20021311系列, 10 触点, 插座, 1.27 mm, 通孔安装, 2 排
The is a 10-way 2-row through-hole vertical Board-to-board Receptacle with gold-plated copper alloy contacts, 1.27mm pitch. This Minitek127 20021311 series connector wit black high temperature plastic housing. The housing will withstand exposure to 260°C peak temperature for 10-second in a convention Infra-red or vapour phase reflow oven.
- .
- UL94V-0 Flammability rating
触点数 10
极性 Female
触点电镀 Gold
排数 2
针脚数 10
额定电流Max 1A/触头
额定电压Max 125 VAC
接触电阻Max 30 mΩ
安装方式 Through Hole
长度 5.08 mm
宽度 3 mm
高度 4.3 mm
颜色 Black
触点材质 Copper Alloy
工作温度 -40℃ ~ 105℃
产品生命周期 Active
包装方式 Tube
制造应用 General Purpose，Industrial，Telecommunications, Industrial, 通用，工业，电信, 工业
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
REACH SVHC版本 2015/06/15
