20020009-H061B01LF

AMPHENOL FCI  20020009-H061B01LF  插拔式接线端子, 6 路, 300 V, 8 A, 5.08 mm, 24 AWG, 12 AWG

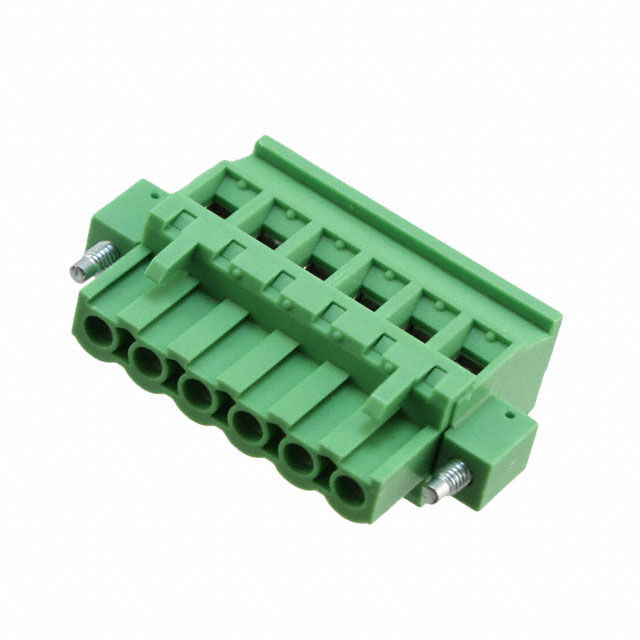

The from FCI is a 6 pole, 5.08mm pitch pluggable terminal block with side entry hook and flange. This terminal block is suitable for wire size ranging from 24AWG to 12AWG.

.

Thermoplastic insulation

.

Green colour housing material

.

Flammability rating meets UL94 V-0

.

Zinc plated steel screw and screw flange

.

Nickel plated copper alloy clamp

.

Tin plated copper alloy terminal

.

Voltage rating of 300VAC at 12A rated current

.

Operating temperature range from -40°C to 115°C

.

cULus certified
