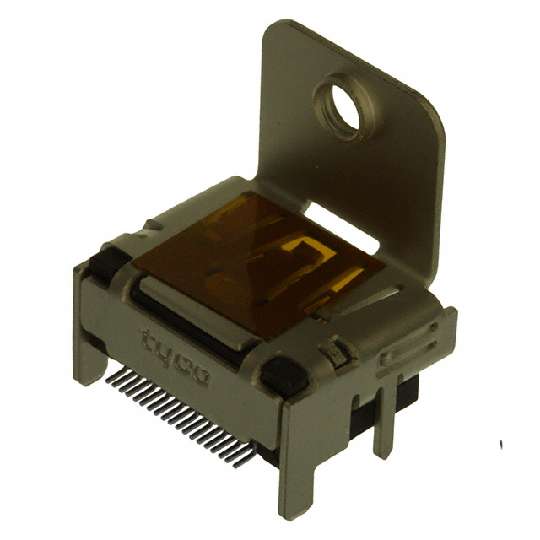

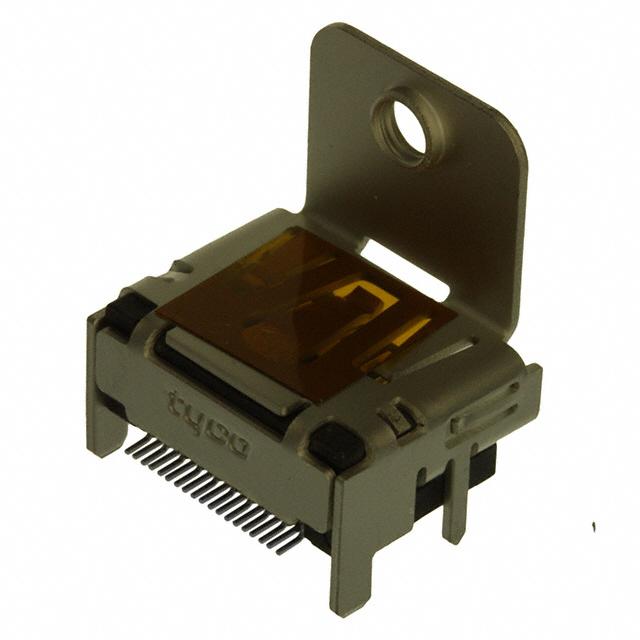

2-1747981-3

TE CONNECTIVITY  2-1747981-3  连接器, HDMI, 插座, 19 触点, 电路板安装, 金属主体, 镀金触芯

HDMI - 插座 19 位 面板安装，表面贴装，直角；通孔

得捷:
CONN RCPT HDMI 19POS PNL MNT R/A

e络盟:
连接器, HDMI, 19 触点, 插座, 电路板安装, 表面安装 直角, 镀金触芯, 金属主体

艾睿:
Run your audio and video effectively with the hdmi 2-1747981-3 audio and video connector from TE Connectivity. This RCP connector&s;s 19 contacts that are made out of copper alloy and plated with gold over nickel. Its pitch is 0.5 mm. It has a receptacle type gender. This connector has a single port. It has a maximum voltage rating of 40 VAC. It has a straight body orientation. This device has a maximum current rating of 0.5 A/contact. 2-1747981-3 is housed in thermoplastic. In order to ensure safe delivery and enable quick mounting of this component after delivery, it will be encased in tape and reel packaging during shipment. This product is 15 mm long, 16.05 mm tall and 11.55 mm deep. Its 19 terminals use the solder termination method. This part has a minimum operating temperature of -25 °C and a maximum of 70 °C.

安富利:
Conn HDMI RCP 19 POS 0.5mm Solder ST SMD 19 Terminal 1 Port T/R

Verical:
Conn HDMI RCP 19 POS 0.5mm Solder RA SMD 19 Terminal 1 Port T/R

Newark:
# TE CONNECTIVITY  2-1747981-3  HDMI Connector, 19 Contacts, Jack, PCB Mount, Gold Plated Contacts, Metal Body

MASTER:
EMBOSS PACKAGE AND TRAY PACKAGE HDMI REC. CONN. SMT

Powell:
Audio and Video Interconnect

Online Components:
ASSY HDMI RECEPTACLE SMT

Electro Sonic:
Std HDMI, RA, SMT, Panel grd, Flange
