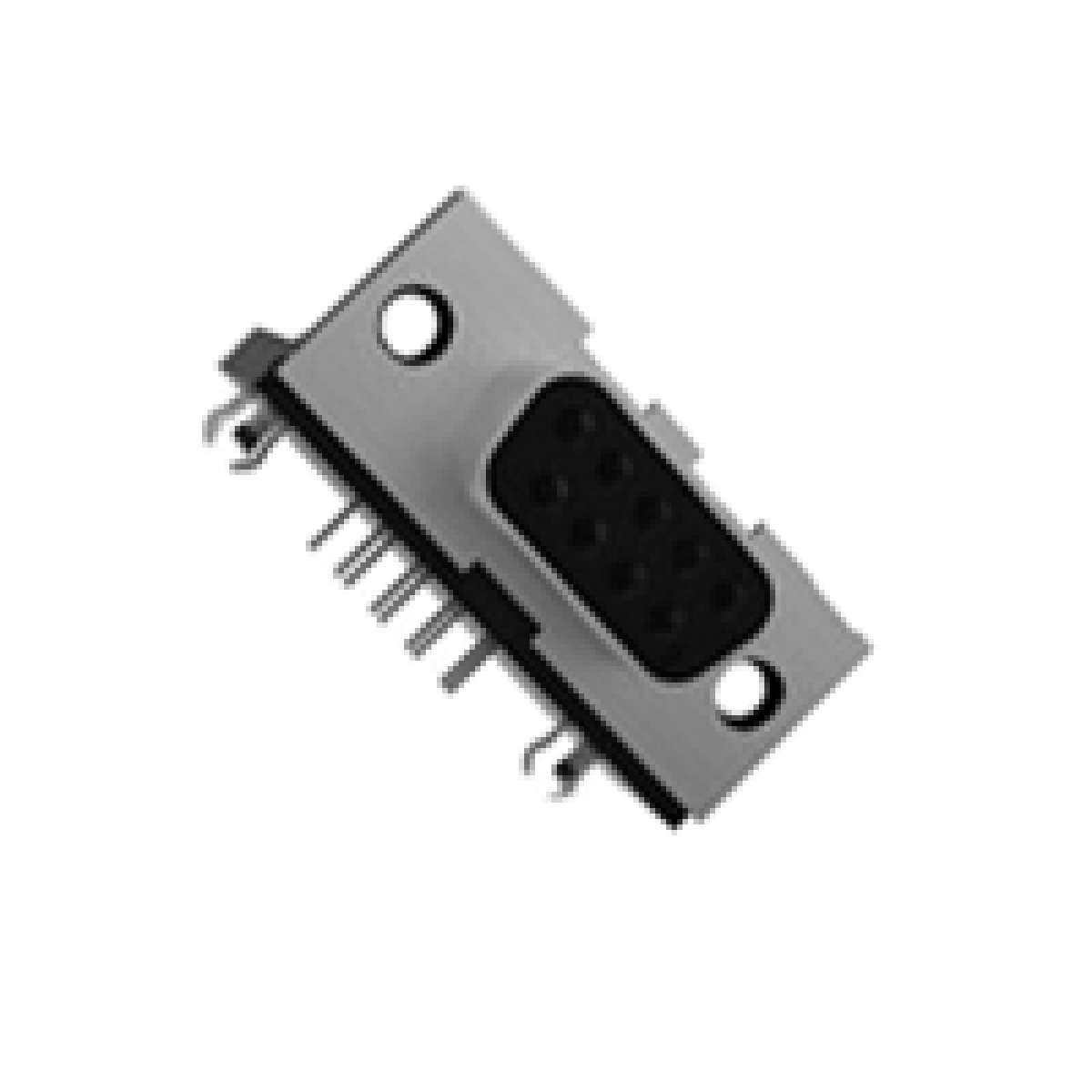

2-106505-2

D-SUB 欧洲标准尺寸 HD-20 90° 内螺纹带集成 PCB 安装和接地 金属法兰中的螺母 UNC 4-40 焊接连接，具有 0.7 mm 孔径 Ø 金属盖 Contact material: | Phosphor Bronze ---|--- Contact surface: | 0.76 μm gold Insulation: | Polyester, GV Inflammability: | UL 94V-0 Current carrying capacity: | 6 A max. ### 认可UL, CSA### 标准DIN 41652### TE Connectivity AMPLIMITE D - 超微型连接器Amplimite 系列的连接器和附件。适合于军事应用、工业应用或者商业应用和计算机接口连接等等

D-SUB 欧洲标准尺寸 HD-20 90° 内螺纹

带集成 PCB 安装和接地

金属法兰中的螺母 UNC 4-40

焊接连接，具有 0.7 mm 孔径 Ø

金属盖

Contact material: | Phosphor Bronze

---|---

Contact surface: | 0.76 μm gold

Insulation: | Polyester, GV

Inflammability: | UL 94V-0

Current carrying capacity: | 6 A max.

### 标准

DIN 41652

### 认可

UL, CSA

得捷:
CONN D-SUB RCPT 9POS R/A SLDR

欧时:
### D-SUB 欧洲标准尺寸 HD-20 90° 内螺纹带集成 PCB 安装和接地 金属法兰中的螺母 UNC 4-40 焊接连接，具有 0.7 mm 孔径 Ø 金属盖 Contact material: | Phosphor Bronze ---|--- Contact surface: | 0.76 μm gold Insulation: | Polyester, GV Inflammability: | UL 94V-0 Current carrying capacity: | 6 A max. ### 认可UL, CSA### 标准DIN 41652### TE Connectivity AMPLIMITE D - 超微型连接器

贸泽:
D-Sub高密度连接器 9P.HDP20 REC.ASSY.

艾睿:
The 2-106505-2 DVI connector from TE Connectivity is perfect for communicating between serial connections with minimal interference. It has a right angle body orientation. Its pitch is 2.74 mm. This socket type connector&s;s 9 contacts that are made out of phosphor bronze and plated with gold over nickel. This 2-row connector has a single port. 2-106505-2 is housed in polyester. This device has a maximum current rating of 6 A/contact. This component will be shipped in tray format. Its 9 terminals use the solder termination method. This product is 30.9 mm long, 13.6 mm tall and 21.3 mm deep. This DVI connector has an operating temperature of -55 to 105 °C.

Allied Electronics:
Connector, HD-20, 90deg, recp, PCB, size1

安富利:
Conn D-Subminiature SKT 9 POS 2.74mm Solder RA Thru-Hole 9 Terminal 1 Port

Chip1Stop:
Conn D-Subminiature SKT 9 POS 2.74mm Solder RA Thru-Hole 9 Terminal 1 Port

Verical:
Conn D-Subminiature SKT 9 POS 1.37mm Solder RA Thru-Hole 9 Terminal 1 Port Tray

Newark:
# AMP - TE CONNECTIVITY  2-106505-2  9P.HDP20 REC.ASSY. New

MASTER:
HD-20 SIZE 1 RIGHT ANGLE RECEPTACLE HEADER; MARK II

Powell:
Standard Board Mount Connectors

Online Components:
9P.HDP20 REC.ASSY.

Electro Sonic:
9P.HDP20 REC.ASSY.
