2-215309-5

集管和线壳 HV-100-F.ASSY.2X25P

2X25P HV100 REC CON. TE, 8.5MM

得捷:
CONN RCPT 50POS 0.1 GOLD PCB

贸泽:
集管和线壳 HV-100-F.ASSY.2X25P

艾睿:

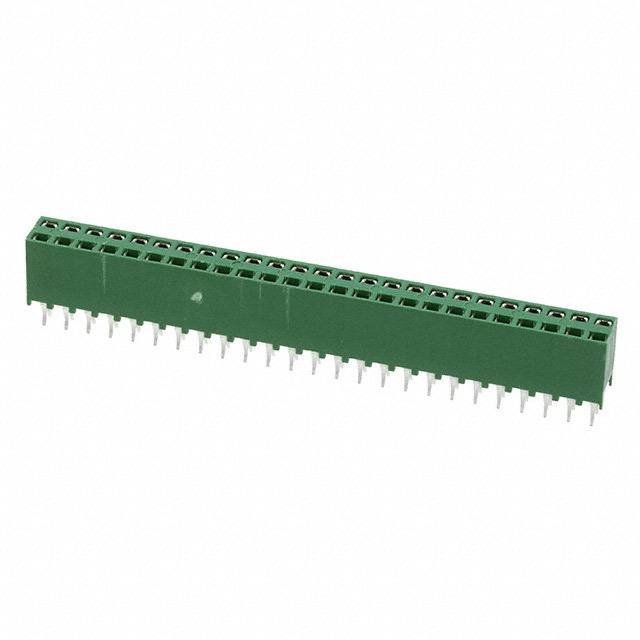

Use this socket strip 2-215309-5 header connector from TE Connectivity where IDC ribbon cables are used. This SKT connector&s;s 50 contacts that are made out of phosphor bronze and plated with gold over nickel. It has a straight body orientation. Its pitch is 2.54 mm. It has a socket type gender. This is a 2-row connector. This device has a maximum current rating of 3 A/contact. This connector has an operating temperature of -65 to 105 °C. This product is 63.5 mm long, 8.5 mm tall and 5.06 mm deep. 2-215309-5 is housed in green polyester. It uses the solder termination method.

安富利:
Conn Socket Strip SKT 50 POS 2.54mm Solder ST Thru-Hole

Verical:
Conn Socket Strip SKT 25 POS 2.54mm Solder ST Thru-Hole Carton

Newark:
# AMP - TE CONNECTIVITY  2-215309-5  2X25P HV100 REC CON. TE, 8.5MM New

MASTER:
HV 100 VERTICAL CONNECTOR, DUAL ROW, 8.5mm HEIGHT, TOP ENTRY , GOLD, MAX. 2X36 POSITIONS

Powell:
.100 inch AMPMODU Receptacles

Online Components:
2X25P HV100 REC CON. TE, 8.5MM

Electro Sonic:
2X25P HV100 REC CON. TE, 8.5MM
