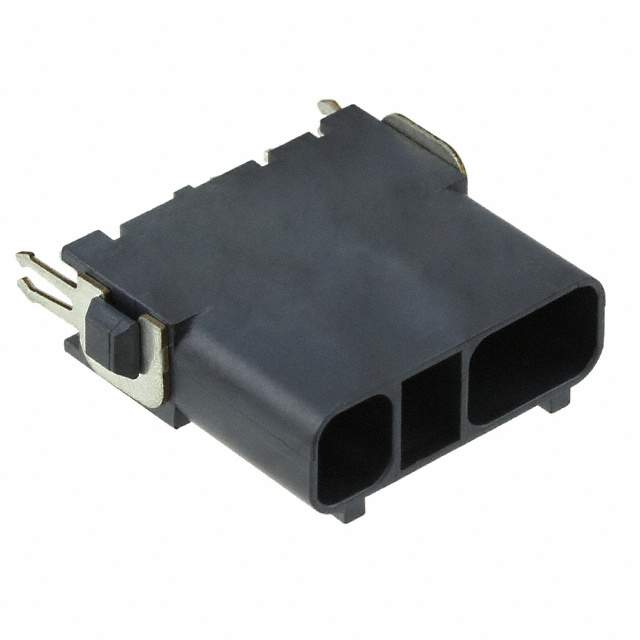

2106112-4

3 位置 3.5mm 中心线 SlimSeal 固态照明 PCB 安装 连接器

固态照明 3 位置 接头，公引脚 板至电缆/导线 0.138"（3.50mm） 焊接

得捷:
CONN SSL HDR 3POS 3.5MM SOLDER

艾睿:
Reduce the possibility of accidentally shorting pins when using a printed circuit board with this wire to board 2106112-4 header connector from TE Connectivity. This HDR connector&s;s 3 contacts that are made out of brass and plated with tin over nickel. This is a 1-row connector. It has a maximum voltage rating of 250 VDC|250VAC. It has a header type gender. It has a straight body orientation. This device has a maximum current rating of 5 A/contact. In order to ensure parts aren&s;t damaged by bulk packaging, this product comes in tube packaging to add a little more protection by storing the loose parts in an outer tube. It uses the solder termination method. This connector has an operating temperature of -40 to 105 °C. This product is 21.04 mm long, 17.59 mm tall and 6.96 mm deep. 2106112-4 is housed in black liquid crystal polymer.

安富利:
Conn Wire to Board HDR 3 POS Solder ST Thru-Hole Tube

Verical:
Conn Wire to Board HDR 3 POS Solder ST Thru-Hole Tube

Newark:
# TE CONNECTIVITY  2106112-4  Wire-To-Board Connector, 3.5 mm, 3 Contacts, Header, SlimSeal Series, Through Hole, 1 Rows

Powell:
Lighting Connectors Assembly Vertical TH Header

AMEYA360:
CONN SSL HDR 3POS 3.5MM SOLDER

Electro Sonic:
Assembly, Vertical TH Header, 3-Position
