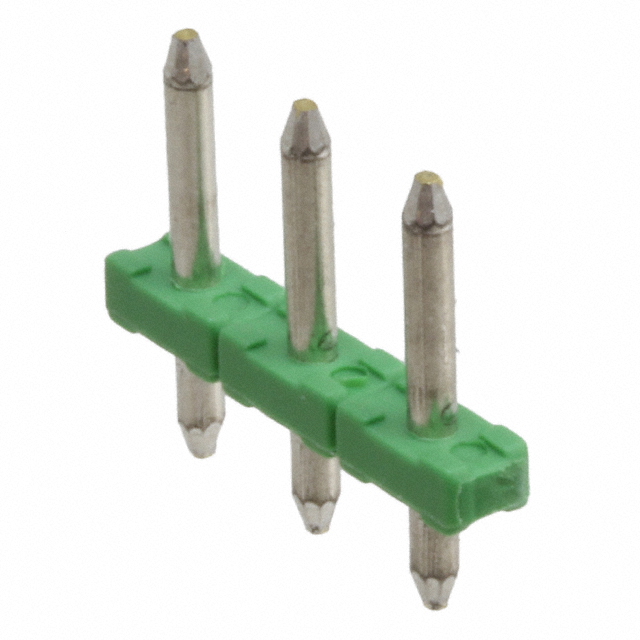

282832-3

3 位置 5 mm 间距 欧式 接线端子

TERMI-BLOK PIN HEAD 180 3P. 5

Product Highlights

Connector

Connector Type = Header

Not Shrouded

Housing Color = Green

Not Side Stackable

得捷:
TERM BLOCK HDR 3POS VERT 5MM

艾睿:
Mounting this unshrouded 282832-3 header connector from TE Connectivity to your printed circuit board can help you support multiple physical configuration options. This HDR connector&s;s 3 contacts that are made out of brass and plated with tin over nickel. Its pitch is 5 mm. It has a header type gender. It has a straight body orientation. It has a maximum voltage rating of 300 VAC. This is a 1-row connector. This device has a maximum current rating of 12 A/contact. This product is 15 mm long, 9 mm tall and 2.8 mm deep. This connector has an operating temperature of -40 to 105 °C. 282832-3 is housed in green polyamide 6/6. It uses the solder termination method.

安富利:
Conn Unshrouded Header HDR 3 POS 5mm Solder ST Thru-Hole

Chip1Stop:
Conn Unshrouded Header HDR 3 POS 5mm Solder ST Thru-Hole Box

Verical:
Conn Unshrouded Header HDR 3 POS 5mm Solder ST Thru-Hole Box

MASTER:
TERMI-BLOK PIN HEAD 180 3P. 5

Powell:
Terminal Block Connectors

Online Components:
TERMI-BLOK PIN HEAD 180 3P. 5

Electro Sonic:
TERMI-BLOK PIN HEAD 180 3P. 5
