282825-2

TE Connectivity TERMI-BLOK 5.08mm 开口端印刷电路板端子块管座TERMI-BLOK 5..08mm 垂直安装开口端管座，带螺纹法兰和极化键接插槽。 这些 TERMI-BLOK 5.08mm 开口端印刷电路板管座端子块连接器为边层叠式，且由绿色聚酰胺 6.6 GF 制成。### 认可UL 编号 E 60677，CSA 文件编号 007189A### TE Connectivity TERMI-BLOK 5.08mm 两件式端子块技术参数 --- 额定电流 | 12A 电压额定值 | 250V 交流 导线接受范围 | 0.3 至 2.5mm（实心） 外壳 | 聚酰胺 6//6，UL94 V-0 级 触点材料 | 螺旋夹 - 镀镍黄铜 管座 - 镀锡黄铜

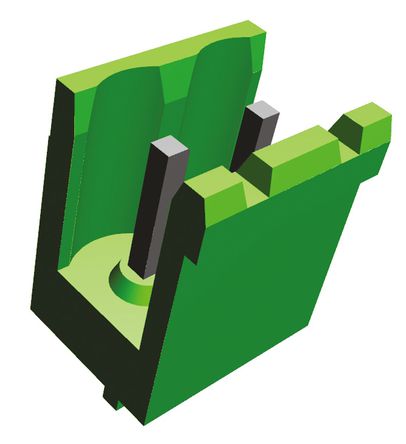

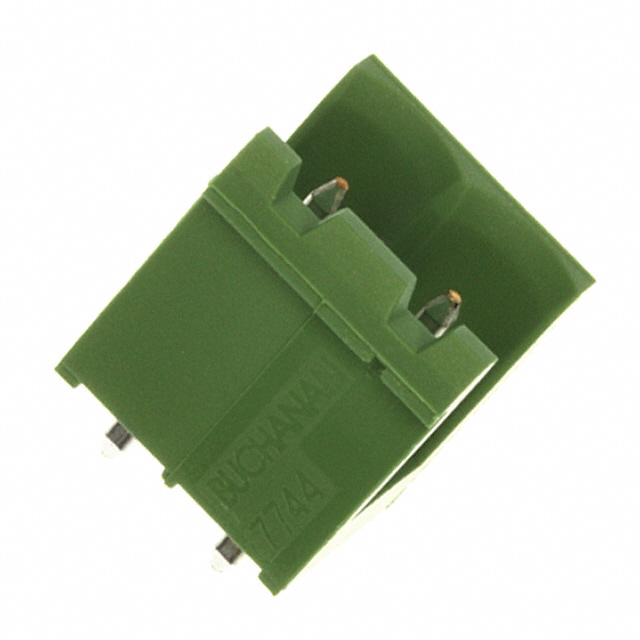

TERMI-BLOK 5.08mm 开口端印刷电路板端子块管座

TERMI-BLOK 5..08mm 垂直安装开口端管座，带螺纹法兰和极化键接插槽。 这些 TERMI-BLOK 5.08mm 开口端印刷电路板管座端子块为边层叠式，且由绿色聚酰胺 6.6 GF 制成。

### 认可

UL 编号 E 60677，CSA 文件编号 007189A

得捷:
TERM BLOCK HDR 2POS VERT 5.08MM

欧时:
HEADER 2P 5.08MM

艾睿:
Safety is an important concern when designing electronic devices. TE Connectivity&s;s shrouded 282825-2 header connector helps protect your equipment from accidental shortages. This HDR connector&s;s 2 contacts that are made out of phosphor bronze and plated with tin. This is a 1-row connector. It has a straight body orientation. It has a maximum voltage rating of 300 VAC. It has a header type gender. Its pitch is 5.08 mm. This device has a maximum current rating of 15 A/contact. This product is 10.16 mm long, 12 mm tall and 8.35 mm deep. It uses the solder termination method. 282825-2 is housed in green polyamide 6/6.

安富利:
Conn Shrouded Header HDR 2 POS 5.08mm Solder ST Thru-Hole

富昌:
插头 带护套 2 位置 5.08 mm 间距 欧式接线端子

Verical:
Conn Shrouded Header 2 Sides HDR 2 POS 5.08mm Solder ST Thru-Hole Box

Newark:
# AMP - TE CONNECTIVITY  282825-2  TERMI-BLOK HEADER,ASSY90 2P.5, New

MASTER:
TERMI-BLOK HEADER,ASSY90 2P.5,

Powell:
Terminal Block Connectors

Online Components:
TERMI-BLOK HEADER,ASSY90 2P.5,

Electro Sonic:
TERMI-BLOK HEADER,ASSY90 2P.5,
