207365-8

Conn Power PIN 3POS 5mm Solder ST Thru-Hole 3 Terminal 1Port

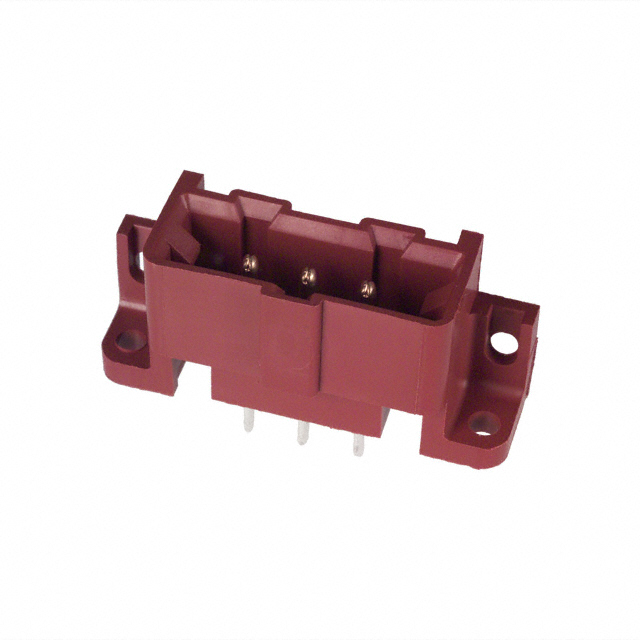

** Metrimate In-Line Pin and Socket Headers**

Metrimate In-Line PCB mount pin and socket headers with 5mm centerline. These in-line pin and socket headers are made from UL 94V-0 red thermoplastic with copper alloy plated tin or gold duplex pin contacts or phosphor bronze plated tin or gold duplex socket contacts.

得捷:
CONN HEADER VERT 3POS 5MM

立创商城:
207365-8

艾睿:
Use the 207365-8 power connector from TE Connectivity to power up your circuit with the least amount of losses. This PIN connector&s;s 3 contacts that are made out of brass and plated with gold over nickel. Its pitch is 5 mm. It has a maximum voltage rating of 600 VDC|600VAC. It has a straight body orientation. This connector has a single port. 207365-8 is housed in nylon. This device has a maximum current rating of 14 A/contact. In order to ensure parts aren&s;t damaged by bulk packaging, this product comes in tube packaging to add a little more protection by storing the loose parts in an outer tube. Its 3 terminals use the solder termination method. This product is 36.86 mm long, 17.5 mm tall and 12.7 mm deep. This power connector has an operating temperature range of -55 °C to 130 °C.

Allied Electronics:
MATE-N-LOK Series, 5mm Pitch 3 Way Straight PCB Header, Solder Termination, 14A

安富利:
Conn Power PIN 3 POS 5mm Solder ST Thru-Hole 3 Terminal 1 Port

Chip1Stop:
Conn Power PIN 3 POS 5mm Solder ST Thru-Hole 3 Terminal 1 Port

Verical:
Conn Power PIN 3 POS 5mm Solder ST Thru-Hole 3 Terminal 1 Port

Newark:
# AMP - TE CONNECTIVITY  207365-8  Rectangular Connector, Metrimate Series, 3 Contacts, Header, 5 mm, Through Hole, 1 Row

MASTER:
PIN HEADER ASSEMBLY, 3 POSN, IN-LINE, SMALL METRIC CONNECTOR, METRIMATE

Powell:
Metrimate Connectors

Online Components:
METRIMATE PIN HDR ASY,3P LF

Electro Sonic:
METRIMATE PIN HDR ASY,3P LF
