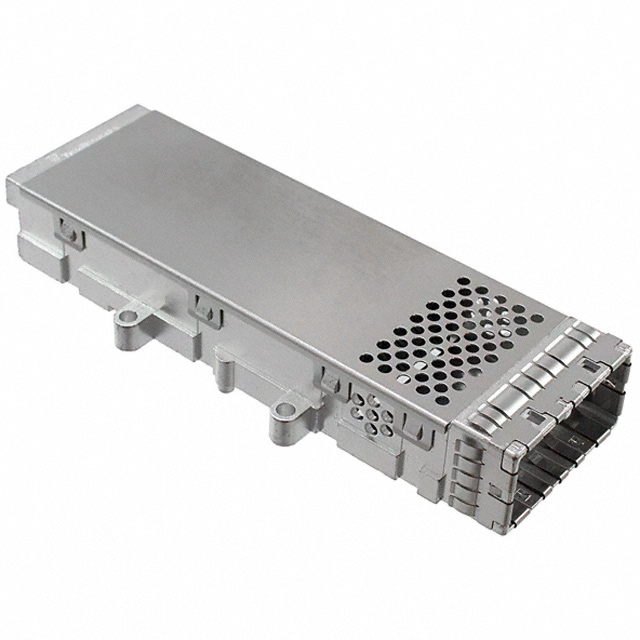

2149731-1

TE CONNECTIVITY  2149731-1  输入输出连接器, CXP系列, I/O, 插座, 84 触点, 压配合, 电路板安装

84 位置 CXP 带机架的插座 压配 通孔，直角

得捷:
CONN CXP RCPT W/CAGE 84POS R/A

e络盟:
# TE CONNECTIVITY  2149731-1  输入输出连接器, CXP系列, I/O, 插座, 84 触点, 压配合, 电路板安装

艾睿:
Do not worry about a bad telecom line connection again with this cxp 2149731-1 telephone and telecom connector manufactured from TE Connectivity. This RCP connector&s;s 84 contacts that are made out of phosphor bronze and plated with gold over palladium nickel. This connector has a single port. Its pitch is 2.4 mm. It has a receptacle type gender. It has a right angle body orientation. This device has a maximum current rating of 0.5 A/contact. This component will be shipped in tray format. 2149731-1 is housed in black liquid crystal polymer. It uses the press fit termination method.

Allied Electronics:
Conn; Rect; Pluggable/IO; Receptacle; 84Pos; Press-Fit; CXP; Extended; w/Cover; LCP

安富利:
Conn CXP RCP 84 POS Press Fit RA Thru-Hole 84 Terminal 1 Port Tray

Chip1Stop:
Conn CXP RCP 84 POS Press Fit RA Thru-Hole 84 Terminal 1 Port Tray

Verical:
Conn CXP RCP 84 POS 2.4mm Press Fit RA Thru-Hole 84 Terminal 1 Port Tray

Newark:
# AMP - TE CONNECTIVITY  2149731-1  RECEPTACLE ASSEMBLY WITH COVER New

MASTER:
RECEPTACLE ASSEMBLY WITH COVER, BELLY-BELLY, EXTENDED, 84 POSITION, CXP

Powell:
I/O Connectors CXP RCP ASSY 11.55MM EXT BELLY W/COVER

Online Components:
RECEPTACLE ASSEMBLY WITH COVER, BELLY-BELLY, EXTENDED, 84 POSITION, CXP

Electro Sonic:
Receptacle assembly with cover
