Conn Terminal Block 6POS 3.81mm Solder ST Thru-Hole 12A/Contact
6 接线板 - 线至板 水平,带板 0.150"(3.81mm) 通孔
得捷:
TERM BLK 6P SIDE ENT 3.81MM PCB
贸泽:
Fixed Terminal Blocks 6P SIDE ENTRY 3.81MM
艾睿:

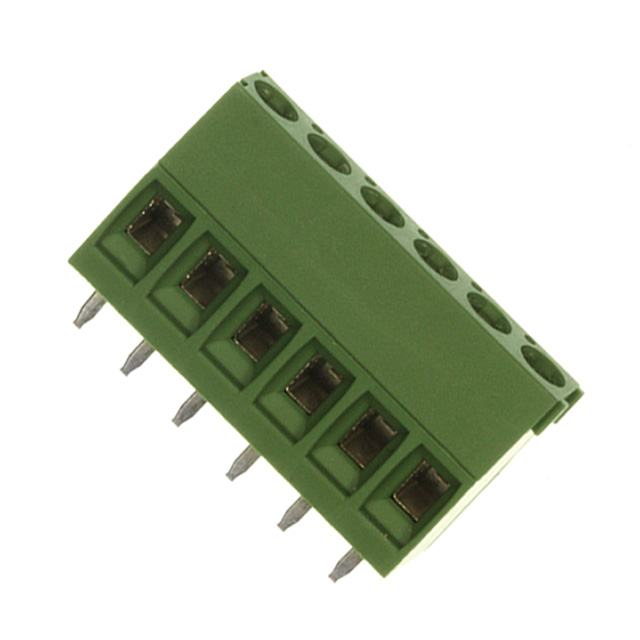

This eurostyle block 284392-6 PCB terminal block from TE Connectivity will join multiple circuits by connecting to the bare wire. Its pitch is 3.81 mm. This is a 1-row connector. It has a straight body orientation. It has a maximum voltage rating of 300 VAC. 284392-6 is housed in polyamide 6/6. This device has a maximum current rating of 12 A/contact. This product is 22.86 mm long, 12.6 mm tall and 8.2 mm deep. Its wire is 14-30 AWG. It uses the solder termination method. This quick disconnect terminal has an operating temperature of -40 to 105 °C.
安富利:
Conn Terminal Block 6 POS 3.81mm Solder ST Thru-Hole 12A/Contact
Chip1Stop:
Conn Eurostyle Block 6 POS 3.81mm Solder ST Thru-Hole 12A/Contact Box
Verical:
Conn Eurostyle Block HDR 6 POS 3.81mm Solder ST Thru-Hole 12A/Contact Box
MASTER:
TERMINAL BLOCK, PCB MOUNT, STRAIGHT SIDE ENTRY WIRE, STACKING
Powell:
Terminal Block Connectors
Online Components:
TERMI-BLOK PCB SIDE ENTRY STAC
Electro Sonic:
TERMI-BLOK PCB SIDE ENTRY STAC

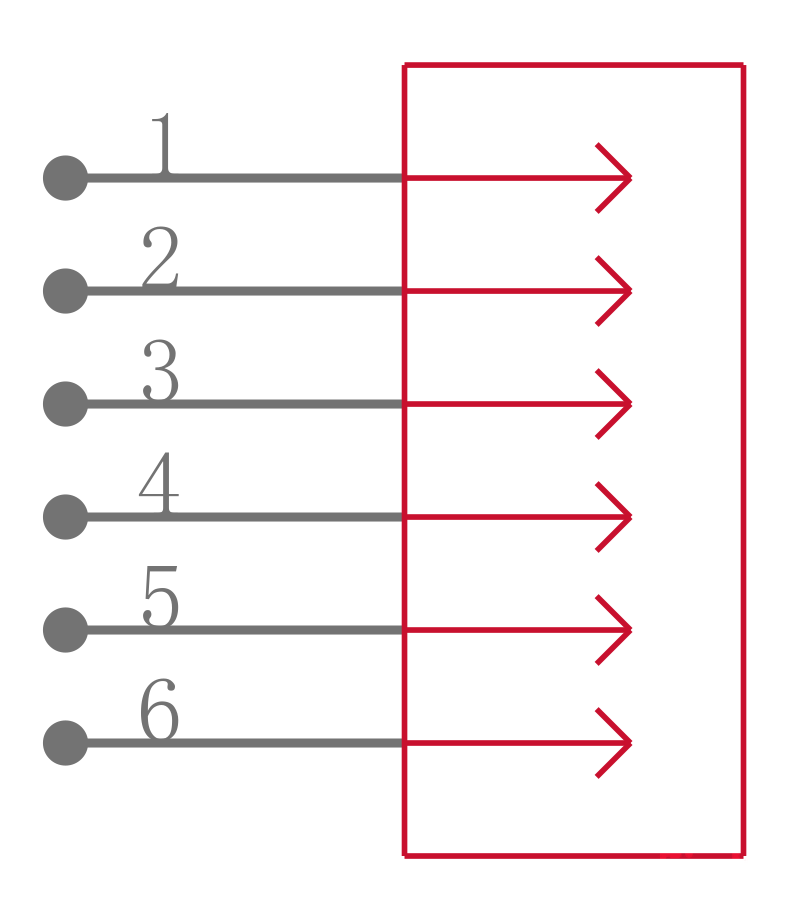

触点数 6
线规 14AWG ~ 30AWG
触点电镀 Tin
额定电流 12 A
排数 1
电路数 6
易燃性等级 UL 94 V-0
针脚数 6
额定电流Max 12A/触头
工作温度Max 105 ℃
工作温度Min -40 ℃
额定电压Max 300 VAC
额定电压 300 V
工作电压Max 300 VAC
安装方式 Through Hole

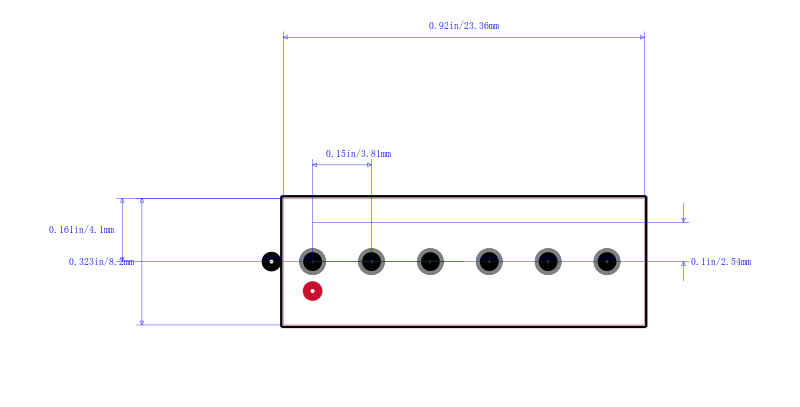

引脚间距 3.81 mm
长度 22.86 mm
宽度 8.2 mm
高度 12.6 mm
引脚间距 3.81 mm
外壳颜色 Green
颜色 Green
触点材质 Brass
工作温度 -40℃ ~ 105℃
外壳材质 Nylon 6/6
产品生命周期 Active
包装方式 Box
RoHS标准 RoHS Compliant
含铅标准 Lead Free
ELV标准 Compliant
ECCN代码 EAR99
HTS代码 8536694040
