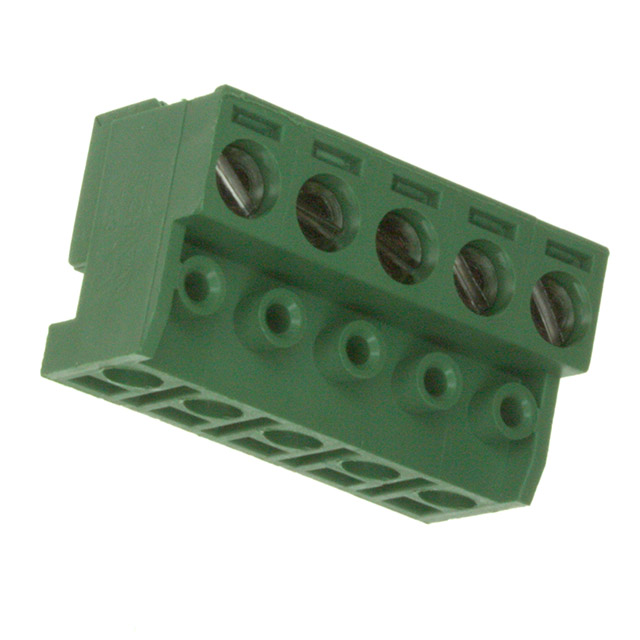

Conn Terminal Block F 5POS 5mm Screw Straight/Right Angle Cable Mount 12A/Contact
TERMI-BLOK PLUG 90&180 5P. 5
得捷:
TERM BLOCK PLUG 5POS 90DEG 5MM
艾睿:
This eurostyle block 282830-5 PCB terminal block developed by TE Connectivity will mend different gage wires together. This F connector&s;s 5 contacts that are made out of phosphor bronze/brass and plated with tin/nickel. This is a 1-row connector. It has a maximum voltage rating of 300 VAC. It has a female type gender. It has a straight/right angle body orientation. Its pitch is 5 mm. This device has a maximum current rating of 12 A/contact. 282830-5 is housed in polyamide 6/6. It uses the screw termination method. Its wire is 12-30 AWG. This quick disconnect terminal has an operating temperature of -40 to 105 °C. This product is 25 mm long, 11.5 mm tall and 13.9 mm deep.
安富利:
Conn Terminal Block F 5 POS 5mm Screw Straight/Right Angle Cable Mount 12A/Contact
Verical:
Conn Eurostyle Block F 5 POS 5mm Screw Straight/Right Angle Cable Mount 12A/Contact
Newark:
# AMP - TE CONNECTIVITY 282830-5 TERMI-BLOK PLUG 90180 5P. 5 New
MASTER:
TERMINAL BLOCK PLUG 90/180 DEGREE, STRIGHT SIDE STACKABLE, 5.0mm PITCH
Powell:
Terminal Block Connectors
Online Components:
TERMI-BLOK PLUG 90&180 5P. 5
Electro Sonic:
TERMI-BLOK PLUG 90&180 5P. 5
触点数 5
线规 12AWG ~ 30AWG
触点电镀 Tin
排数 1
电路数 5
易燃性等级 UL 94 V-0
针脚数 5
额定电流Max 12A/触头
工作温度Max 105 ℃
工作温度Min -40 ℃
额定电压Max 300 VAC
工作电压Max 300 VAC
高度 11.5 mm
外壳颜色 Green
颜色 Green
触点材质 Phosphor Bronze
工作温度 -40℃ ~ 105℃
外壳材质 Nylon 6/6
产品生命周期 Active
包装方式 Bulk
RoHS标准 RoHS Compliant
含铅标准 Lead Free
ELV标准 Compliant
ECCN代码 EAR99
HTS代码 8536694040
