282841-6

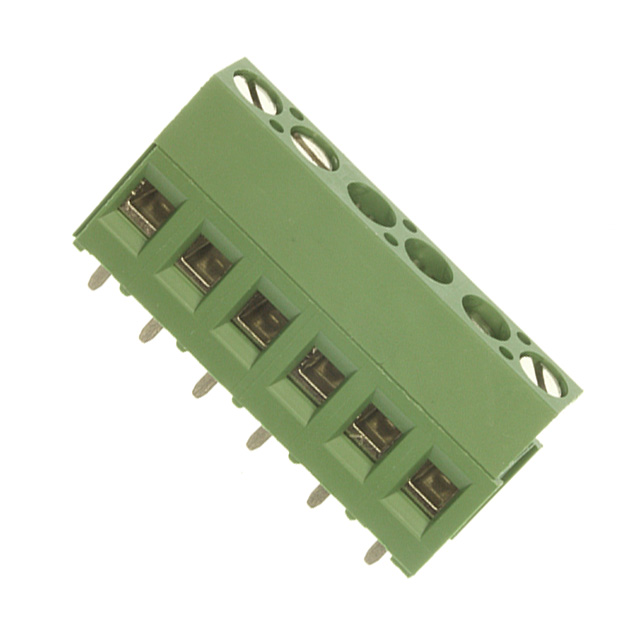

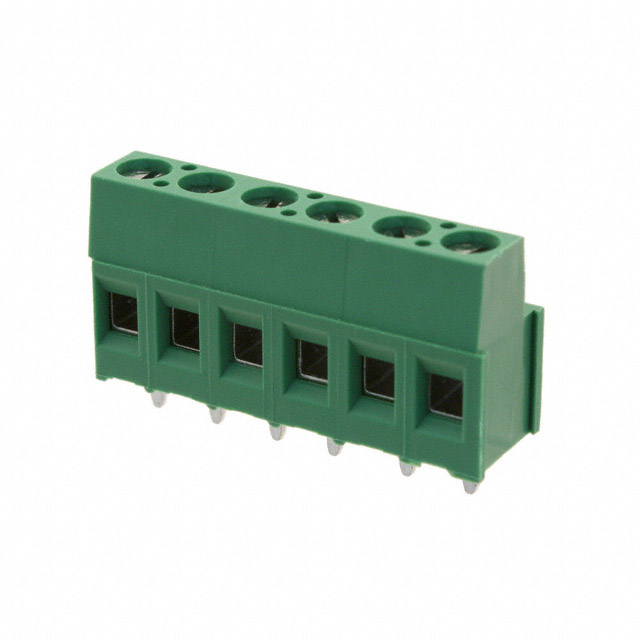

BUCHANAN - TE CONNECTIVITY 282841-6 Wire-To-Board Terminal Block, 5.08mm, 6Positions, 30AWG, 12AWG, 3mm², Screw

TERMI-BLOK PCB MOUNT 6P. 5

Product Highlights

Connector

Connector Type = Wire Receptacle

Housing Color = Green

Not Side Stackable

Without Screw Flange

得捷:
TERM BLK 6P SIDE ENT 5.08MM PCB

艾睿:
Need to ensure strong connections between circuits? This eurostyle block 282841-6 PCB terminal block from TE Connectivity will do just that! Its pitch is 5.08 mm. It has a maximum voltage rating of 300 VAC. It has a straight body orientation. This is a 1-row connector. 282841-6 is housed in polyamide 6/6. This device has a maximum current rating of 17.5 A/contact. Its wire is 12-30 AWG. It uses the solder termination method. This product is 30.48 mm long, 15.2 mm tall and 9 mm deep. This quick disconnect terminal has an operating temperature of -40 to 105 °C.

安富利:
Conn Terminal Block 6 POS 5.08mm Solder ST Thru-Hole 17.5A/Contact

Chip1Stop:
Conn Terminal Block 6 POS 5.08mm Solder ST Thru-Hole 17.5A/Contact

Verical:
Conn Eurostyle Block HDR 6 POS 5.08mm Solder ST Thru-Hole 17.5A/Contact Carton

MASTER:
TERMINAL BLOCK PCB MOUNT W/INTERLOCK, 5.08mm PITCH

Powell:
Terminal Block Connectors

Online Components:
TERMI-BLOK PCB MOUNT 6P. 5

Electro Sonic:
TERMI-BLOK PCB MOUNT 6P. 5
