Inductor High Current Toroid 33uH/21.6uH 15% 1kHz 7.4A 20mOhm DCR RDL

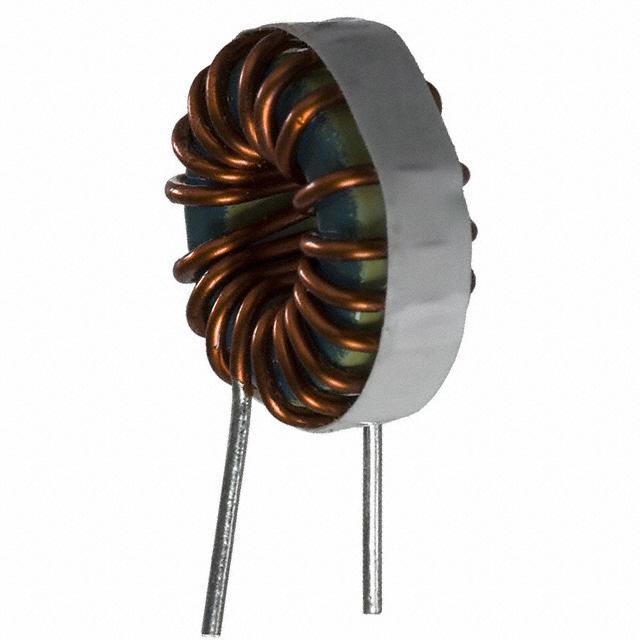

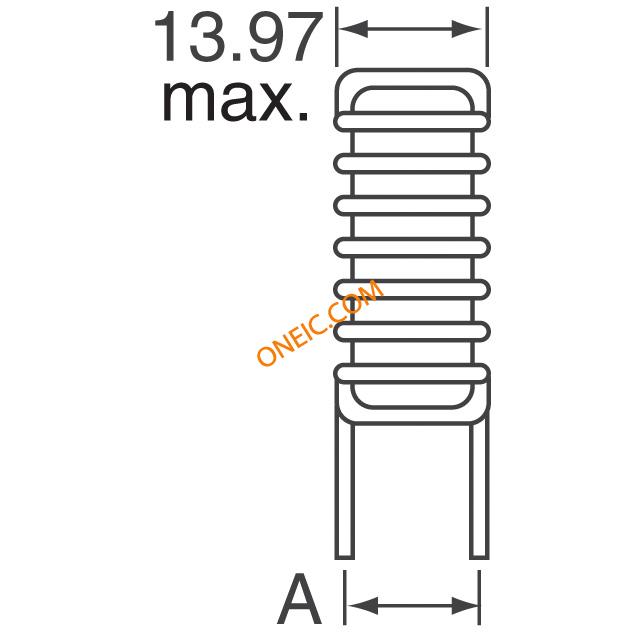

This high current leaded inductor from Bourns is constructed on a core with concentric leads on opposite ends of the core. This part has a pitch of 11.43 mm. This leaded inductor has an operating temperature range of -55 °C to 105 °C. This product is 13.97 mm deep. It has a tolerance of 15%. It has an inductance of 33u/21.6uRated H. This device utilizes toroid technology. Its test frequency is 1K Hz. This leaded inductor has a maximum DC current of 7.4 A with a maximum resistance of 20m Ohm.
额定电流 7.4 A
容差 ±15 %
电感 33 µH
屏蔽 No
电感公差 ±15 %
测试频率 1 kHz
电阻DC) ≤20 mΩ
工作温度Max 105 ℃
工作温度Min -55 ℃
电阻DC Max 0.02 Ω
安装方式 Through Hole
引脚数 2
封装 Radial
宽度 0.55 in
高度 14.0 mm
直径 24.1 mm
封装 Radial
工作温度 -55℃ ~ 105℃
产品生命周期 Active
包装方式 Bulk
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC版本 2016/06/20
ECCN代码 EAR99
HTS代码 8504508000
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
2207-V-RC Bourns J.W. Miller 伯恩斯 | 当前型号 | 当前型号 |
2207-V 伯恩斯 | 类似代替 | 2207-V-RC和2207-V的区别 |
