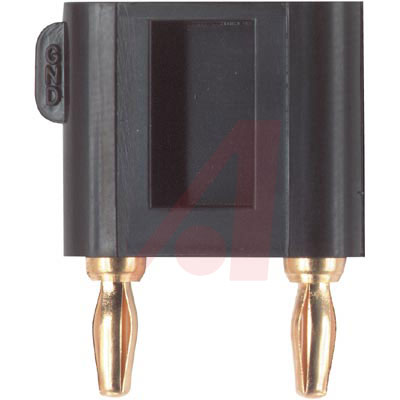

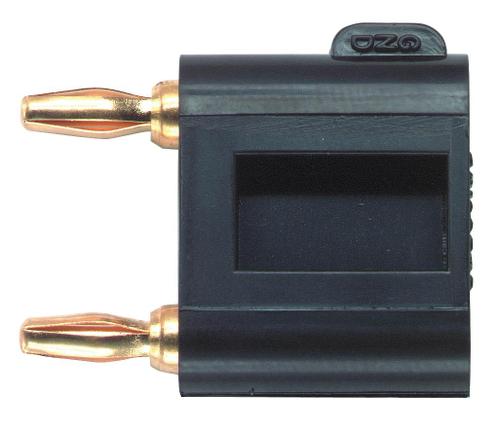

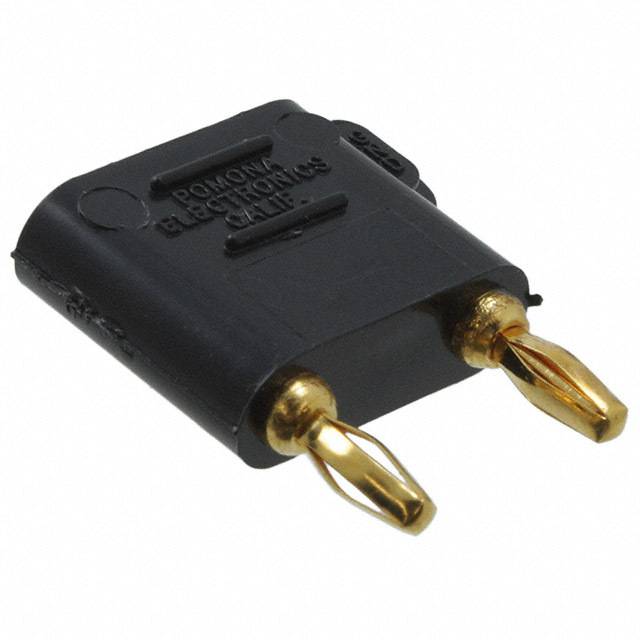

POMONA 2035-0 香蕉插头, 小型, 双路, 5A, 黑色
The is a black miniature double Banana Plug with shorting bar, cable mounting, ABS insulation, gold-plated beryllium copper spring and gold-plated brass banana jack top side and nickel-plated brass banana plug bottom side body. The plug to plug and jack to jack dimension is 0.500-inch 12.70mm typical for double miniature banana plugs/jacks.
- .
- Provides a quick and easy means of shorting two inputs of a miniature double banana jack
- .
- ABS body provides insulation protection to user
- .
- Shorting adapter has double miniature jacks at topside for stacking capability
- .
- Shorting adapter has double miniature jacks at the topside for stacking capability
触点数 2
极性 Male
触点电镀 Gold
额定电压DC 2.50 kV
额定电流 5 A
针脚数 2
额定电流Max 5 A
工作温度Max 50 ℃
额定电压 2.5 kV
安装方式 Panel
引脚间距 0.5 in
直径 3.05 mm
引脚间距 0.5 in
外壳颜色 Black
颜色 Black
触点材质 Beryllium Copper
绝缘材质 Acrylonitrile Butadiene Styrene ABS
工作温度 50 ℃
产品生命周期 Active
包装方式 Bulk
制造应用 测试与测量, Electronics Design, Computer Hardware, 计算机硬件, 电子服务, 生产制造, Electronics Service, 仪器仪表, Instrumentation, Test & Measurement, Manufacturing
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
REACH SVHC版本 2015/06/15
ECCN代码 EAR99
| 型号/品牌 | 代替类型 | 替代型号对比 |
|---|---|---|
2035-0 Pomona Electronics | 当前型号 | 当前型号 |
2035-2 Pomona Electronics | 完全替代 | 2035-0和2035-2的区别 |
3030 Pomona Electronics | 完全替代 | 2035-0和3030的区别 |
2244-0 Pomona Electronics | 完全替代 | 2035-0和2244-0的区别 |
