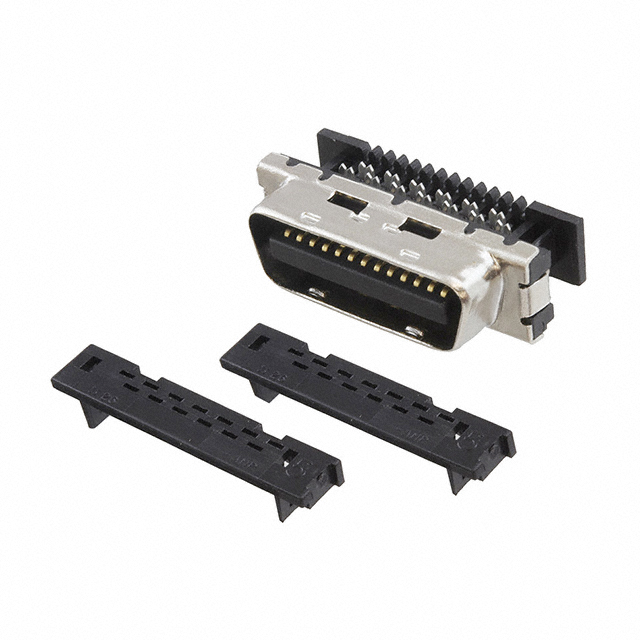

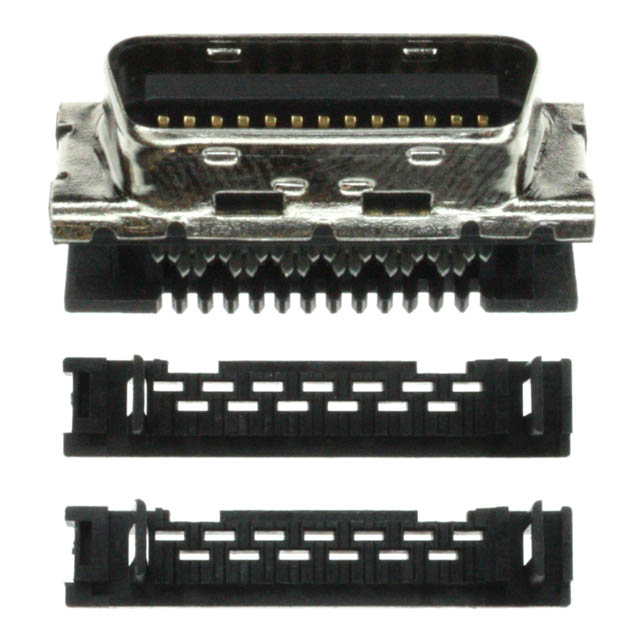

2-5175677-4

Conn SCSI PL 26POS 1.27mm IDT RA Cable Mount 26 Terminal 1Port

CHAMP.050 PLUG CONN KIT 26P PB

Product Highlights

Mating Type = Plug

Number of Positions = 26

Terminate To Cable

With Mating Connector Lock

Wire Size = 28 mm² [AWG]

得捷:
CONN PLUG 26POS STR IDC

艾睿:
Devices such as printers and scanners that run the Small Computer System Interface standards and protocols will require this 2-5175677-4 SCSI connector from 2-5175677-4 in order to interface with each other. This PL connector&s;s 26 contacts that are made out of phosphor bronze and plated with gold over nickel. It has a plug type gender. Its pitch is 1.27 mm. This connector has a single port. It has a maximum voltage rating of 250 VAC. It has a right angle body orientation. 2-5175677-4 is housed in polybutylene terephthalate. This device has a maximum current rating of 1 A/contact. Its 26 terminals use the idt termination method. This SCSI connector has a minimum operating temperature of -55 °C and a maximum of 105 °C. This product is 26 mm long, 12.7 mm tall and 8 mm deep.

安富利:
Conn SCSI PL 26 POS 1.27mm IDT RA Cable Mount 26 Terminal 1 Port

Verical:
Conn SCSI PL 26 POS 1.27mm IDT RA Cable Mount 26 Terminal 1 Port Kit

MASTER:
CHAMP .050 PLUG CONN. KIT

Powell:
1.27 [.050] Series II and Series III Connectors

Online Components:
CHAMP.050 PLUG CONN KIT 26P PB

Electro Sonic:
CHAMP.050 PLUG CONN KIT 26P PB
