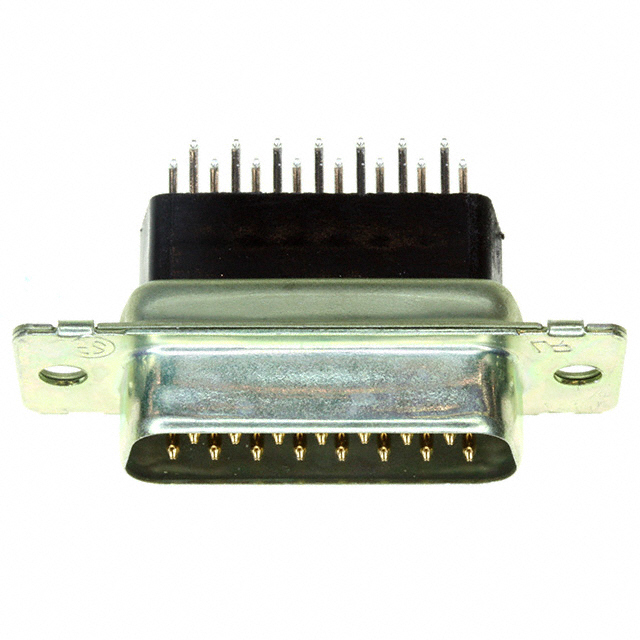

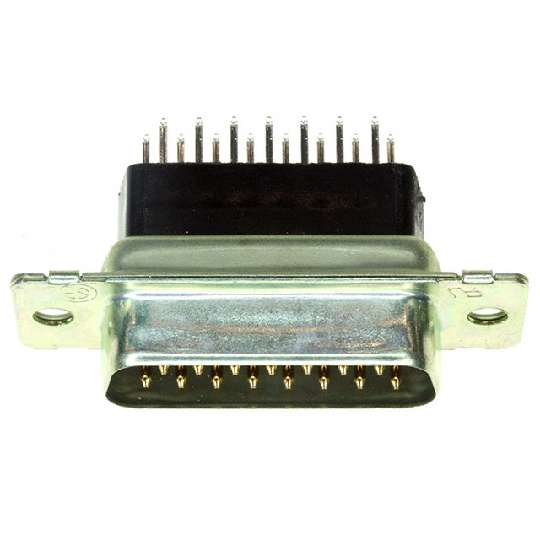

205735-7

Conn D-Subminiature PIN 15POS 2.74mm Solder ST Thru-Hole 15 Terminal 1Port Tube

15 位 D-Sub 插头，公引脚

得捷:
CONN D-SUB PLUG 15POS VERT SLDR

艾睿:
Make the most secure connections between serial ports using the 205735-7 DVI connector from TE Connectivity. It has a straight body orientation. Its pitch is 2.74 mm. It has a maximum voltage rating of 250 VDC|250VAC. This 2-row connector has a single port. 205735-7 is housed in nylon. In order to ensure parts aren&s;t damaged by bulk packaging, this product comes in tube packaging to add a little more protection by storing the loose parts in an outer tube. This DVI connector has an operating temperature of -55 to 105 °C. This product is 39.52 mm long, 17.78 mm tall and 12.93 mm deep. Its 15 terminals use the solder termination method.

Powell:
Standard Board Mount Connectors

Electro Sonic:
15 PLUG SP/MS STD
