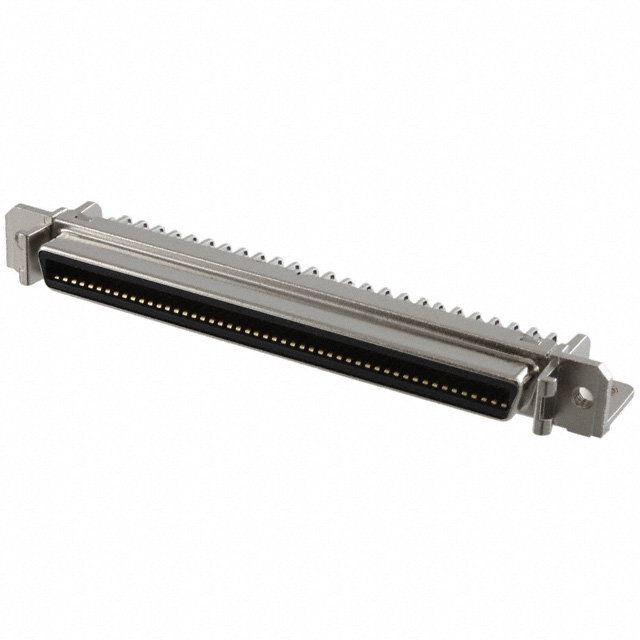

2-5178238-9

AMP FROM TE CONNECTIVITY  2-5178238-9  输入输出连接器, Champ系列, I/O, 插座, 100 触点, 焊接, 电路板安装

CHAMP.050 REC ASS"Y 100P PB-FR

Product Highlights

Mating Type = Receptacle

Number of Positions = 100

Terminate To Printed Circuit Board

Right Angle Mount Angle

Yes PCB Retention Feature

得捷:
CONN RCPT 100POS R/A SOLDER

e络盟:
输入输出连接器, Champ系列, I/O, 插座, 100 触点, 焊接, 电路板安装

艾睿:
Devices such as printers and scanners that run the Small Computer System Interface standards and protocols will require this 2-5178238-9 SCSI connector from 2-5178238-9 in order to interface with each other. This RCP connector&s;s 100 contacts that are made out of copper alloy and plated with gold over nickel. This connector has a single port. It has a maximum voltage rating of 250 VAC. It has a receptacle type gender. It has a right angle body orientation. Its pitch is 2.54 mm. 2-5178238-9 is housed in thermoplastic. This device has a maximum current rating of 1 A/contact. The item will be shipped in tray orientation. This SCSI connector has an operating temperature range of -55 °C to 85 °C. Its 100 terminals use the solder termination method. This product is 84.15 mm long, 9.4 mm tall and 16.84 mm deep.

安富利:
Conn SCSI RCP 100 POS 2.54mm Solder RA Thru-Hole 100 Terminal 1 Port

Chip1Stop:
Conn SCSI RCP 100 POS 2.54mm Solder RA Thru-Hole 100 Terminal 1 Port

Verical:
Conn SCSI RCP 100 POS 2.54mm Solder RA Thru-Hole 100 Terminal 1 Port Tray

Newark:
# AMP - TE CONNECTIVITY  2-5178238-9  I/O Connector, 100 Contacts, Receptacle, Wire to Board, Through Hole, CHAMP Series, PCB Mount

MASTER:
RECEPTACLE HDR ASSY 3.1mm RETENTION LEG TYPE STANDARD CHAMP.050 SERIES II

Powell:
1.27 [.050] Series II and Series III Connectors

Online Components:
CHAMP.050 REC ASS"Y 100P PB-FR

Electro Sonic:
CHAMP.050 REC ASS"Y 100P PB-FR
