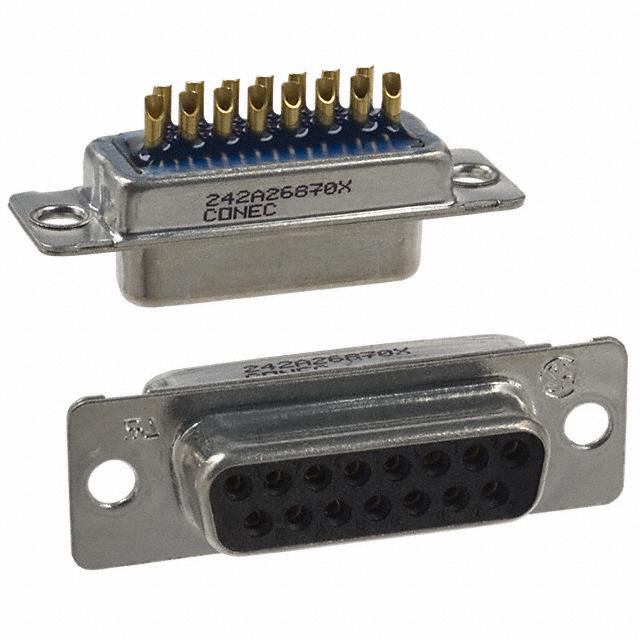

242A26870X

D-Sub标准连接器 15 POS SOLDER CUP AWG 20 FM THRUHOLE

Be sure to set up proper communication between your serial connections with the filtered d-sub DVI connector from . This socket type connector"s 15 contacts that are made out of copper alloy and plated with gold over nickel. It has a straight body orientation. This 2-row connector has a single port. It has a maximum voltage rating of 100 VDC. This device has a maximum current rating of 7.5 A. 242A26870X is housed in polyester. This product is 39.52 mm long, 12.93 mm tall and 16.7 mm deep. This DVI connector has an operating temperature of -25 to 105 °C. Its 15 terminals use the solder cup termination method.
