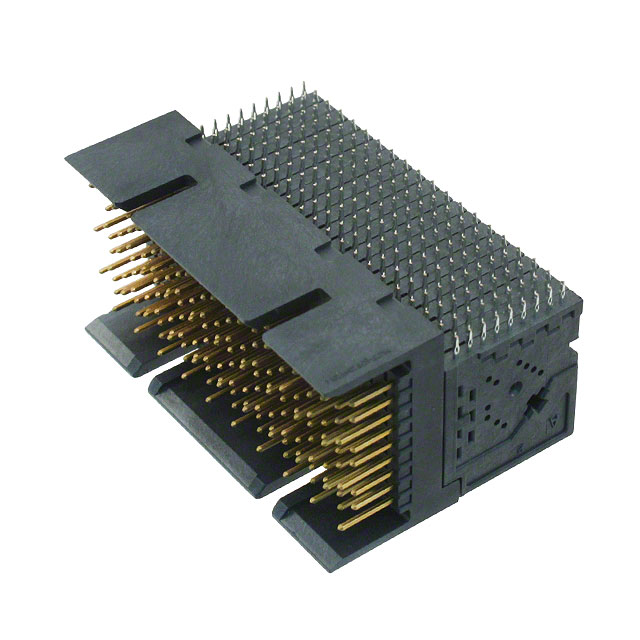

2102316-1

Conn Backplane HDR 180POS 1.4mm Press Fit RA Thru-Hole

Fortis Zd 20 Col R/A Center Assy SE

得捷:
CONN HEADER 180POS EDGE MNT

艾睿:
TE Connectivity&s;s 2102316-1 backplane connector will transfer signals at a faster rate than other connector types. This HDR connector&s;s 180 contacts that are made out of copper alloy and plated with gold over nickel. This is a 9-row connector. It has a right angle body orientation. Its pitch is 1.4 mm. It has a header type gender. This product is 37.92 mm long, 19.8 mm tall and 26.3 mm deep. This backplane connector has an operating temperature of -65 to 125 °C. 2102316-1 is housed in black liquid crystal polymer. It uses the press fit termination method.

Chip1Stop:
Conn Backplane HDR 180 POS 1.4mm Press Fit RA Thru-Hole

Verical:
Conn Backplane HDR 180 POS 1.4mm Press Fit RA Thru-Hole

Newark:
# AMP - TE CONNECTIVITY  2102316-1  FORTIS ZD 20 COL R/A CENTER ASSY SE New

MASTER:
Fortis Zd, 3-PAIR, 20-COLUMN, R/A, CENTER MODULE ASSEMBLY, SINGLE ENDED

Online Components:
Fortis Zd 20 Col R/A Center Assy SE

ICbanQ:
High Speed / Modular Connectors Fortis 20 Col R/A Center Assy Sngl End

Electro Sonic:
Fortis Zd 20 Col R/A Center Assy SE
