2102319-1

高速/模块连接器 FORTIS 20 COL R/A FULL SHROUD ASSY SE

Fortis Zd 20 Col R/A Full Shroud Assy SE

得捷:
CONN HEADER 180POS EDGE MNT

立创商城:
2102319-1

贸泽:
高速/模块连接器 FORTIS 20 COL R/A FULL SHROUD ASSY SE

艾睿:

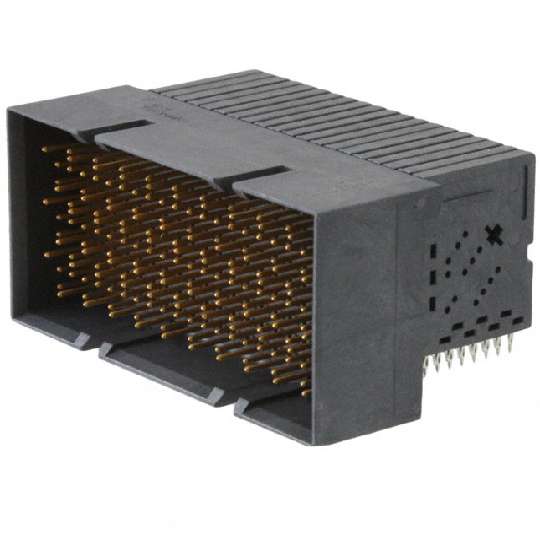

Solder this 2102319-1 backplane connector from TE Connectivity directly onto a PCB to more easily link multiple connectors together. This HDR connector&s;s 180 contacts that are made out of phosphor bronze and plated with gold over nickel. Its pitch is 1.9 mm. This is a 9-row connector. It has a header type gender. It has a right angle body orientation. This backplane connector has an operating temperature of -65 to 125 °C. This product is 43 mm long, 19.8 mm tall and 24.8 mm deep. It uses the solder termination method. 2102319-1 is housed in black liquid crystal polymer.

Chip1Stop:
Conn Backplane HDR 180 POS 1.9mm Solder RA Thru-Hole Package

Verical:
Conn Backplane HDR 180 POS 1.9mm Solder RA Thru-Hole Package

Newark:
# AMP - TE CONNECTIVITY  2102319-1  FORTIS ZD 20 COL R/A FULL SHROUD ASSY SE New

MASTER:
Fortis Zd, 3-PAIR, 20-COLUMN, R/A, FULL SHROUD ASSEMBLY, SINGLE ENDED

Online Components:
Fortis Zd 20 Col R/A Full Shroud Assy SE

Electro Sonic:
Fortis Zd 20 Col R/A Full Shroud Assy SE
