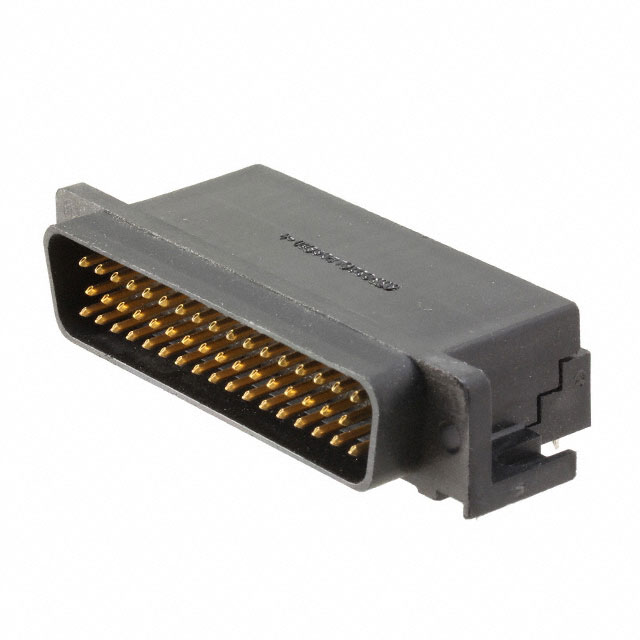

Conn D-Subminiature PL 50POS 2.76mm Solder RA Thru-Hole 50 Terminal 1Port
Conn D-Subminiature PIN 50 POS 2.76mm Solder RA Thru-Hole 50 Terminal 1 Port
Product Highlights
Number of Positions = 50
Plug
PCB Mount Angle = Right Angle
Product Series = HDP-20
Without Mating Connector Lock
Search Keywords:
Subminiature D, AMPLIMITE, MIL-C-24308, DIN 41652, Mark II, Mark III, DIN 41494, box to box, military/aerospace, 13C3, 3C3, HD-22, ACTION PIN, d-sub, d sub, dsub
得捷:
CONN D-SUB PLUG 50POS R/A SLDR
Chip1Stop:
Conn D-Subminiature PIN 50 POS 2.76mm Solder RA Thru-Hole 50 Terminal 1 Port
Verical:
Conn D-Subminiature PIN 50 POS 2.76mm Solder RA Thru-Hole 50 Terminal 1 Port
MASTER:
Conn D-Subminiature PIN 50 POS 2.76mm Solder RA Thru-Hole 50 Terminal 1 Port
Online Components:
Conn D-Subminiature PIN 50 POS 2.76mm Solder RA Thru-Hole 50 Terminal 1 Port
Electro Sonic:
Conn D-Subminiature PIN 50 POS 2.76mm Solder RA Thru-Hole 50 Terminal 1 Port
触点数 50
极性 Male
触点电镀 Gold Flash, Tin over Nickel, Tin Lead
额定电流 6 A
排数 3
方向 Right Angle
易燃性等级 UL 94 V-0
针脚数 50
额定电压 125 V
安装方式 Through Hole
引脚间距 2.77 mm
长度 66.92 mm
宽度 28.32 mm
高度 14.17 mm
引脚间距 2.77 mm
外壳颜色 Black
颜色 Black
触点材质 Brass
工作温度 -55℃ ~ 105℃
外壳材质 Thermoplastic
产品生命周期 Superseded
包装方式 Tube
RoHS标准 Non-Compliant
含铅标准 Lead Free
ELV标准 Compliant
ECCN代码 EAR99
HTS代码 8536694040
