2-84534-4

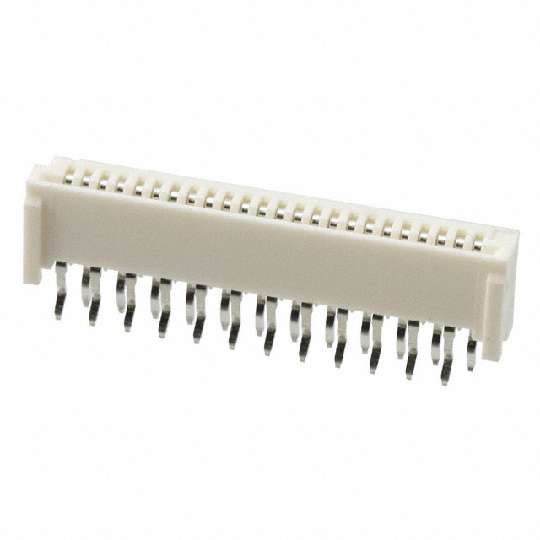

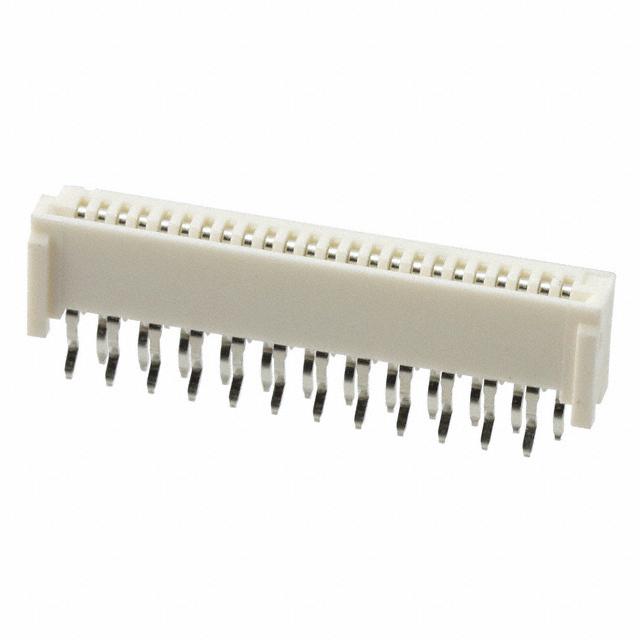

FFC & FPC连接器 POST PLATED VERT 24P 1.25mm

When working with discrete components you should use this ffc connector flexible printed circuit from to save valuable space. Its pitch is 1.25 mm. This socket type connector"s 24 contacts that are made out of phosphor bronze and plated with tin. It has a maximum voltage rating of 50 VAC. It has a straight body orientation. This is a 1-row connector. This device has a maximum current rating of 1 A/contact. The component will be shipped in tray format. 2-84534-4 is housed in white polybutylene terephthalate. This flexible flat cable has an operating temperature of -20 to 80 °C. It uses the solder termination method. This product is 33.75 mm long, 7.8 mm tall and 4.8 mm deep.
