2-1734592-6

AMP FROM TE CONNECTIVITY  2-1734592-6  连接器, FPC, 母 26路 0.5MM

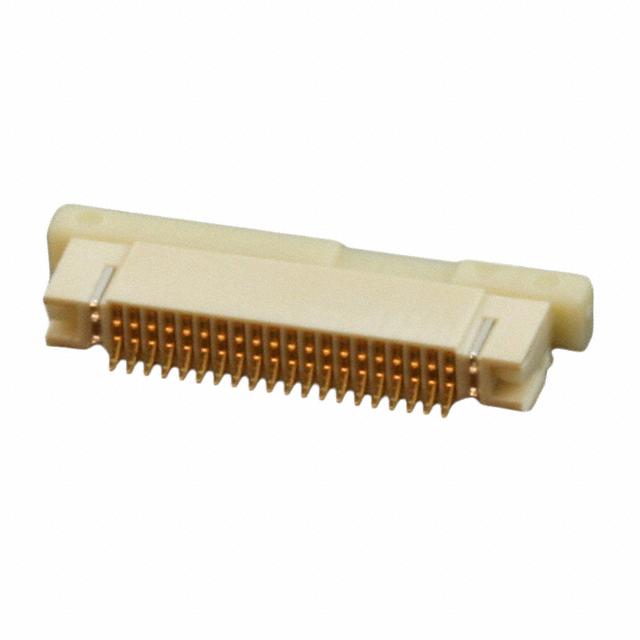

FPC CONN. 0.5MM PITCH B/C, 26P

Product Highlights

.50 mm Centerline

26 Positions

PCB Mount Angle = Right Angle

PCB Mount Style = Surface Mount

Contact Type = Bottom

得捷:
CONN FPC BOTTOM 26POS 0.5MM R/A

e络盟:
连接器, FPC, 母, 26路 0.5MM, 整卷

艾睿:
Optimize the design of a space-limited electronic device with this fpc connector 2-1734592-6 flexible flat cable from TE Connectivity. This socket type connector&s;s 26 contacts that are made out of phosphor bronze and plated with gold over nickel. It has a right angle body orientation. Its pitch is 0.5 mm. It has a maximum voltage rating of 250 VAC. This is a 1-row connector. This device has a maximum current rating of 0.5 A/contact. In order to guarantee safe delivery and allow for quick mounting of this component after delivery, it will be enclosed in tape and reel packaging during shipment. This product is 18.43 mm long, 2.05 mm tall and 5.1 mm deep. 2-1734592-6 is housed in natural liquid crystal polymer. This flexible flat cable has an operating temperature of -20 to 85 °C. It uses the solder termination method.

安富利:
Conn FPC Connector SKT 26 POS 0.5mm Solder RA SMD T/R

Chip1Stop:
Conn FPC Connector SKT 26 POS 0.5mm Solder RA SMD T/R

Verical:
Conn FPC Connector SKT 26 POS 0.5mm Solder RA SMD T/R

Newark:
# AMP - TE CONNECTIVITY  2-1734592-6  FFC / FPC Board Connector, 0.5 mm, 26 Contacts, Receptacle, FPC Series, Surface Mount, Bottom

MASTER:
FPC CONNECTOR, 0.5mm PITCH, BOTTOM CONTACT, SMT TYPE.

Powell:
FPC Flexible Printed Circuit Connectors

Online Components:
FPC CONN. 0.5MM PITCH B/C, 26P

Electro Sonic:
FPC CONN. 0.5MM PITCH B/C, 26P
