2220SC393KAZ1A

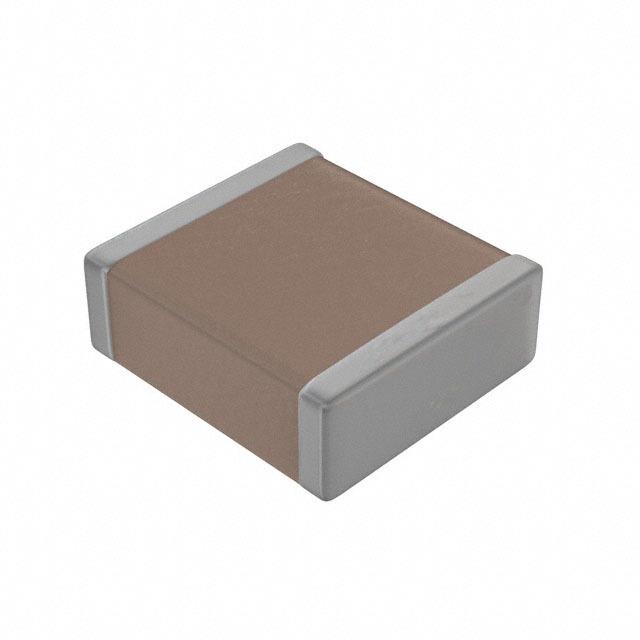

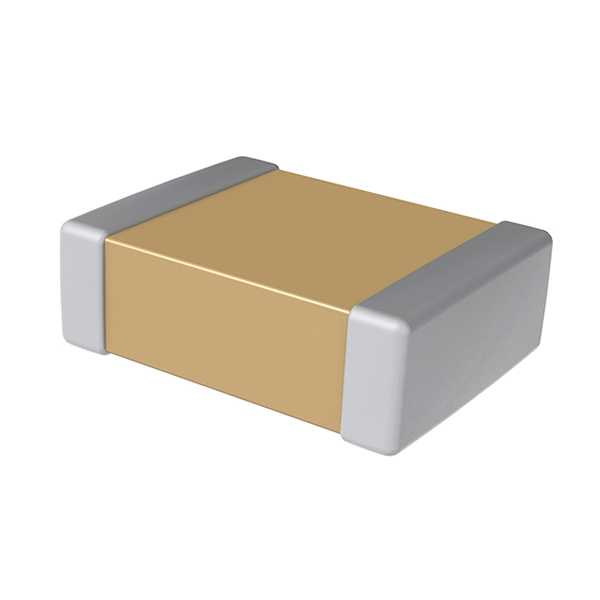

2220SC393KAZ1A图片1
2220SC393KAZ1A图片2
2220SC393KAZ1A图片3
2220SC393KAZ1A图片4
2220SC393KAZ1A概述

2220 39nF ±10% 1.6kV X7R

0.039µF ±10% 1500V 1.5kV Ceramic Capacitor X7R 2220 5750 Metric


得捷:
CAP CER 0.039UF 1.5KV X7R 2220


贸泽:
Multilayer Ceramic Capacitors MLCC - SMD/SMT 1.5KV .039uF X7R 2220 10% Tol HI VOLT


艾睿:
Cap Ceramic 0.039uF 1500V X7R 10% SMD 2220 FlexiTerm 125


安富利:
X7R formulations are called “temperature stable” ceramics and fall into EIA Class II materials. X7R is the most popular of these intermediate dielectric constant materials. Its temperature variation of capacitance is within ±15% from -55°C to +125°C. This capacitance change is non-linear.Capacitance for X7R varies under the influence of electrical operating conditions such as voltage and frequency.X7R dielectric chip usage covers the broad spectrum of industrial applications where known changes in capacitance due to applied voltages are acceptable.


2220SC393KAZ1A中文资料参数规格
技术参数

额定电压DC 1.5 kV

电容 39 nF

容差 ±10 %

电介质特性 X7R

工作温度Max 125 ℃

工作温度Min 55 ℃

额定电压 1500 V

封装参数

安装方式 Surface Mount

封装 2220

外形尺寸

长度 5.7 mm

宽度 5 mm

高度 3.3 mm

封装 2220

物理参数

材质 X7R/-55℃~+125℃

工作温度 -55℃ ~ 125℃

其他

产品生命周期 Active

包装方式 Tape & Reel TR

最小包装 500

制造应用 Boardflex 敏感,SMPS 滤波

符合标准

RoHS标准 RoHS Compliant

含铅标准 Lead Free

数据手册

2220SC393KAZ1A引脚图与封装图

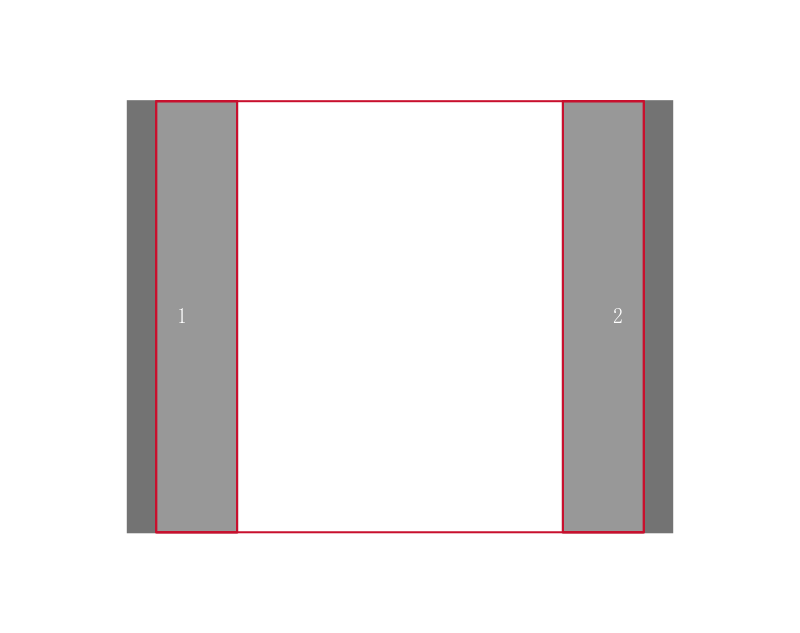

2220SC393KAZ1A引脚图

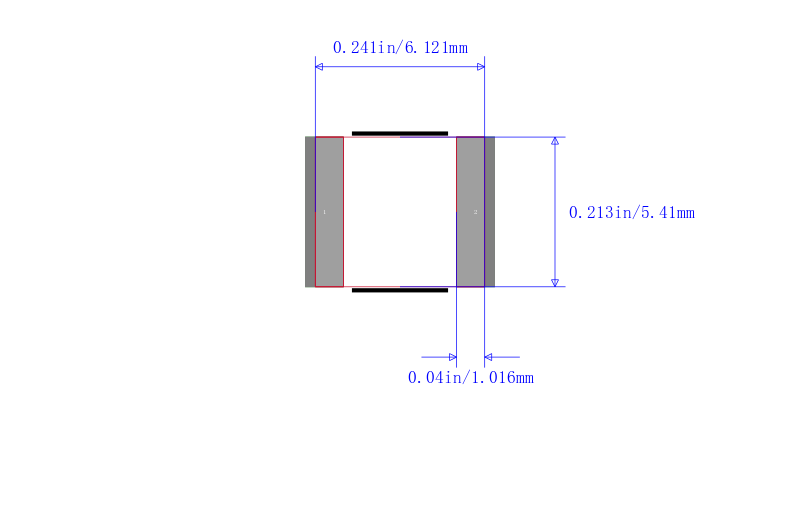

2220SC393KAZ1A封装图
2220SC393KAZ1A封装焊盘图
在线购买2220SC393KAZ1A
型号: 2220SC393KAZ1A
制造商: AVX 艾维克斯
描述:2220 39nF ±10% 1.6kV X7R
替代型号2220SC393KAZ1A
型号/品牌 代替类型 替代型号对比

2220SC393KAZ1A

AVX 艾维克斯

当前型号

当前型号

2220SC393KAX1A

艾维克斯

功能相似

2220SC393KAZ1A和2220SC393KAX1A的区别
