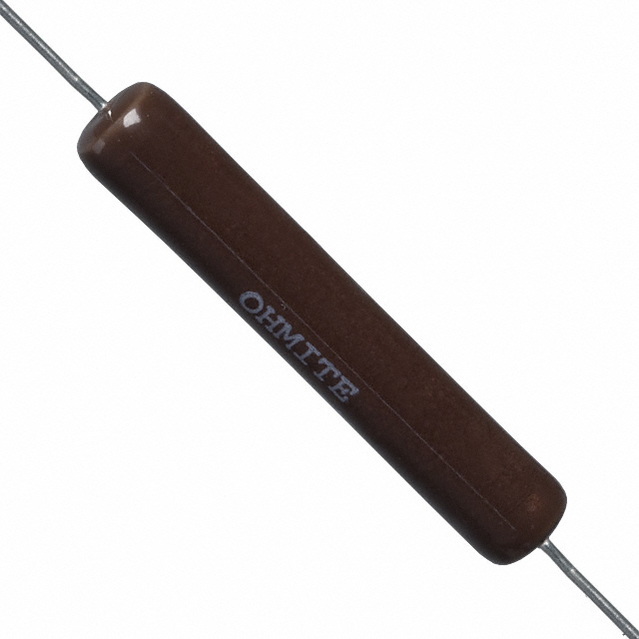

20J500E图片1

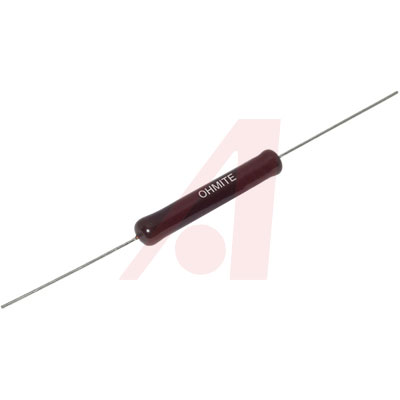

20J500E图片2
20J500E图片3
20J500E图片4
20J500E图片5
20J500E图片6
20J500E图片7
20J500E图片8
20J500E图片9
20J500E图片10
20J500E图片11
20J500E图片12
20J500E概述

OHMITE  20J500E  绕线电阻, 500欧姆 5% 10W

**Features

**

* Rugged Vitreous Enamel Coating Withstands High Humidity and Temperature Cycling

* Durable Construction, Recommended for Industrial Applications Where Reliability Is Paramount

* All-Welded Construction

* Flame-Resistant Vitreous Enamel Coating

* 5% Tolerance


得捷:
RES 500 OHM 5% 10W AXIAL


立创商城:
绕线电阻 500Ω ±5% 10W


贸泽:
Wirewound Resistors - Through Hole 10watt 500ohm 5%


e络盟:
绕线电阻, 500 Ω, 10W, 5%


Allied Electronics:
Resistor; Wirewound; Res 500 Ohms; Pwr-Rtg10 W; Tol 5%; Axial; Vitreous Enamel


Chip1Stop:
Res Wirewound 500 Ohm 5% 10W 30ppm/ C Conformal AXL


Verical:
Res Wirewound 500 Ohm 5% 10W ±30ppm/C Vitreous Enamel AXL


Newark:
# OHMITE  20J500E  Through Hole Resistor, Ceramic, 500 ohm, 720 V, Axial Leaded, 10 W, ± 5%, 20 Series


MASTER:
Res Wirewound 500 Ohm 5% 10W ±30ppm/°C Vitreous Enamel AXL


Online Components:
Res Wirewound 500 Ohm 5% 10W ±30ppm/°C Vitreous Enamel AXL


Electro Sonic:
Res Wirewound 500 Ohm 5% 10W ±30ppm/°C Vitreous Enamel AXL


20J500E中文资料参数规格
技术参数

额定电压DC 720 V

容差 ±5 %

额定功率 10 W

产品系列 20

电阻 500 Ω

阻值偏差 ±5 %

额定电压 720 V

封装参数

安装方式 Through Hole

引脚数 2

封装 Axial Leaded

外形尺寸

长度 46.8 mm

直径 10.0 mm

封装 Axial Leaded

物理参数

工作温度 25℃ ~ 350℃

温度系数 ±30 ppm/℃

其他

产品生命周期 Active

包装方式 Bulk

最小包装 1000

符合标准

RoHS标准 RoHS Compliant

含铅标准 Lead Free

海关信息

ECCN代码 EAR99

HTS代码 8533210080

数据手册

20J500E引脚图与封装图
20J500E引脚图

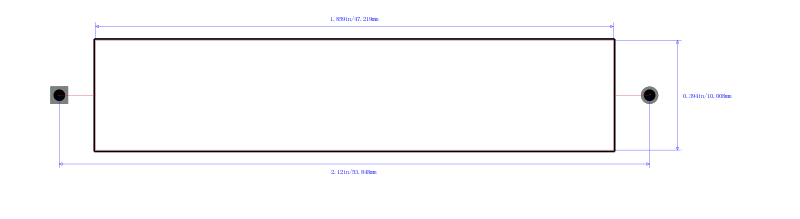

20J500E封装图
20J500E封装焊盘图
在线购买20J500E
型号: 20J500E
制造商: Ohmite
描述:OHMITE  20J500E  绕线电阻, 500欧姆 5% 10W
替代型号20J500E
型号/品牌 代替类型 替代型号对比

20J500E

Ohmite

当前型号

当前型号

20J500

Ohmite

完全替代

20J500E和20J500的区别
