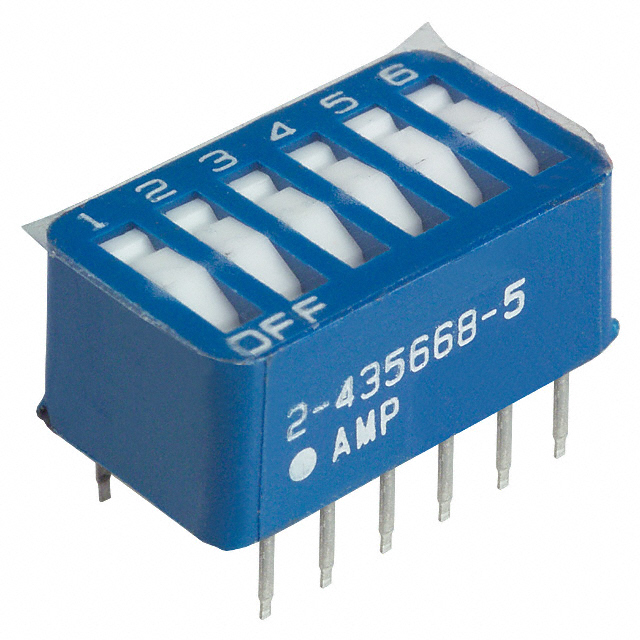

TE CONNECTIVITY / ALCOSWITCH 2-5435668-5 开关, DIP, 7100系列, SPST
DIP SPST 6 位置 通孔 摇臂 触动器 60mA 5VDC
艾睿:
This 2-5435668-5 dual in-line package switch from TE Connectivity can be easily customized and designed to be used on a printed circuit board. This device has a maximum current rating of 1 A @ 40VDC. It has a SPST configuration. The 2-5435668-5 DIP switch has a PC pin termination style. This product is 17.27 mm long, 7.37 mm tall and 9.65 mm deep. This product&s;s terminal pitch is 2.54 mm. The maximum DC voltage rating is 40 VDC.
安富利:
Switch DIP OFF ON SPST 6 Recessed Rocker PC Pins 2.54mm Thru-Hole
Chip1Stop:
Switch DIP OFF ON SPST 6 Recessed Rocker PC Pins 2.54mm Thru-Hole
Verical:
Switch DIP OFF ON SPST 6 Recessed Rocker 1A 40VDC PC Pins 2.54mm Thru-Hole Tube
MASTER:
SWITCH ASSY, DIP, TYPE C, 7100 SERIES, SPST, LOW PROFILE
Powell:
DIP, Rotary DIP, SIP Switches and DIP Shunts - Standard
Online Components:
DIP SW 6 POSN W/TAPE AU
Electro Sonic:
DIP SW 6 POSN W/TAPE AU
触点电镀 Tin
额定电压DC 40 V
接触器类型 Rocker
额定电流 60 mA
方向 Vertical
触点类型 SPST
电路数 6
易燃性等级 UL 94 V-0
针脚数 6
触点额定电流 1 A
额定电流Max 1A @40VDC
额定电压 5 VDC
额定电压DC Max 40 V
安装方式 Through Hole
引脚间距 2.54 mm
长度 17.27 mm
宽度 9.65 mm
高度 7.37 mm
引脚间距 2.54 mm
外壳颜色 Blue
触点材质 Copper Alloy
工作温度 -55℃ ~ 105℃
外壳材质 Polyester
产品生命周期 Active
包装方式 Tube
RoHS标准 RoHS Compliant
含铅标准 Lead Free
ELV标准 Compliant
ECCN代码 EAR99
HTS代码 8536509065
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
2-5435668-5 TE Connectivity 泰科 | 当前型号 | 当前型号 |
2-435668-5 Alcoswitch | 类似代替 | 2-5435668-5和2-435668-5的区别 |
A6DR-6100 欧姆龙 | 功能相似 | 2-5435668-5和A6DR-6100的区别 |
