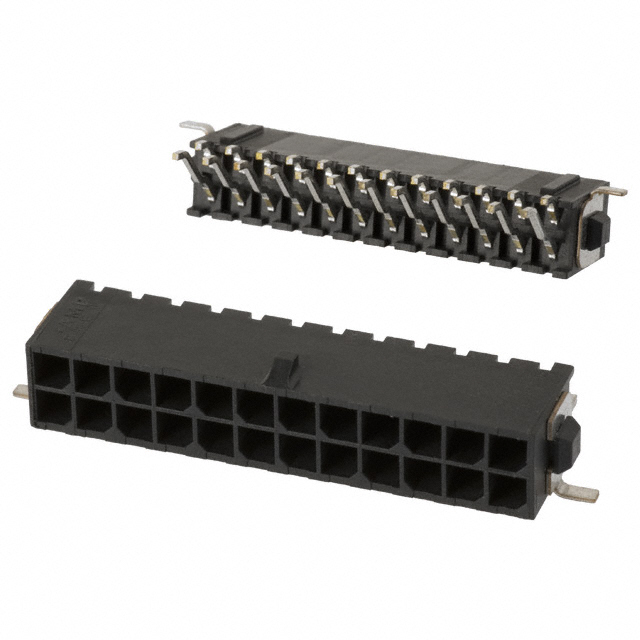

Conn Power HDR 24POS 3mm Solder RA SMD 24 Terminal 1Port T/R
Conn Power HDR 24 POS 3mm Solder RA SMD 24 Terminal 1 Port T/R
Search Keywords:
wire to board, wire to wire, high density, Power Pin & Socket, Soft Shell, Lighting Interconnection, wire to panel, power, pcb connectors, discrete wire, crimp, low profile, Micro MATE-N-LOK connector, MATE-N-LOK connector, Low Profile Soft Shell connector, Lighting, LED Lighting, Lighting Applications, Soft Shell connector, Low profile Micro MATE-N-LOK connector
得捷:
CONN HEADER SMD R/A 24POS 3MM
贸泽:
Pin & Socket Connectors 24POS MICRO MNL ASSY R/A,SMT
艾睿:
Conn Power HDR 24 POS 3mm Solder RA SMD 24 Terminal 1 Port T/R
Verical:
Conn Power HDR 24 POS 3mm Solder RA SMD 24 Terminal 1 Port T/R
MASTER:
Conn Power HDR 24 POS 3mm Solder RA SMD 24 Terminal 1 Port T/R
Powell:
3mm Centerline, 250V, 5 A max.
Online Components:
Conn Power HDR 24 POS 3mm Solder RA SMD 24 Terminal 1 Port T/R
Electro Sonic:
Conn Power HDR 24 POS 3mm Solder RA SMD 24 Terminal 1 Port T/R
触点数 24
触点电镀 Tin Lead
额定电流 5 A
绝缘电阻 1000 MΩ
排数 2
方向 Right Angle
易燃性等级 UL 94 V-0
针脚数 24
安装角度 90.0 °
额定电流Max 5A/触头
工作温度Max 105 ℃
工作温度Min -40 ℃
额定电压Max 250 VAC
接触电阻Max 20 mΩ
安装方式 Surface Mount
引脚间距 3.00 mm
长度 40.0 mm
高度 8.67 mm
引脚间距 3.00 mm
外壳颜色 Black
颜色 Black
触点材质 Brass
工作温度 -40℃ ~ 105℃
外壳材质 Nylon
产品生命周期 Superseded
包装方式 Tape & Reel TR
制造应用 通用
RoHS标准 Non-Compliant
含铅标准 Contains Lead
ELV标准 Non-Compliant
ECCN代码 EAR99
HTS代码 8536694040
