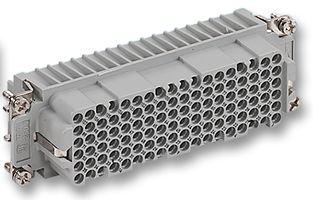

TE CONNECTIVITY / HTS 2-1103220-3 插件,母 压接 108路
母头 无触头嵌件 灰色 108+接地 位置 压接
得捷:
INSERT FEMALE 108POS+1GND CRIMP
e络盟:
重载型连接器, 插入式, HTS系列, 面板安装, 插座, 108 触点, 母, 6 排
艾睿:
TE Connectivity&s;s 2-1103220-3 USB connector can make a durable, rugged connection between different electronic components. This socket type connector has 108signal / 1ground contacts that are plated with silver/gold. It has a receptacle type gender. This is a 6-row connector. It has a straight body orientation. It has a maximum voltage rating of 250 V. 2-1103220-3 is housed in polycarbonate. This device has a maximum current rating of 10 A/contact. This product is 110 mm long, 33 mm tall and 35.5 mm deep. This harting connector has an operating temperature of -40 to 125 °C. It uses the crimp termination method.
安富利:
Conn Rectangular SKT 108Signal/1Ground POS Crimp ST Panel Mount Loose Piece
Chip1Stop:
Conn Rectangular SKT 108Signal/1Ground POS Crimp ST Panel Mount Loose Piece
Verical:
Conn Rectangular SKT 108Signal/1Ground POS Crimp ST Panel Mount Loose Piece
Newark:
# HTS - TE CONNECTIVITY 2-1103220-3 Rectangular Power Connector, Insert, HTS Series, Crimp, Receptacle, 108, Socket
MASTER:
HN.2D.108.BU.C.B.1-
Powell:
HTS Connectors and Accessories
Online Components:
HN.2D.108.BU.C.B.1-
Electro Sonic:
HN.2D.108.BU.C.B.1-
触点数 108
极性 Female
触点电镀 Gold
额定电压AC 250 V
额定电流 10 A
排数 6
针脚数 108
额定电流Max 10A/触头
工作温度Max 125 ℃
工作温度Min -40 ℃
额定电压Max 250 V
额定电压 250 V
安装方式 Through Hole
长度 110 mm
宽度 36 mm
高度 33 mm
颜色 Gray
触点材质 Copper
绝缘材质 Polycarbonate
工作温度 -40℃ ~ 125℃
产品生命周期 Active
包装方式 Bulk
RoHS标准 RoHS Compliant
含铅标准 Lead Free
ELV标准 Compliant
ECCN代码 EAR99
HTS代码 8538906000
