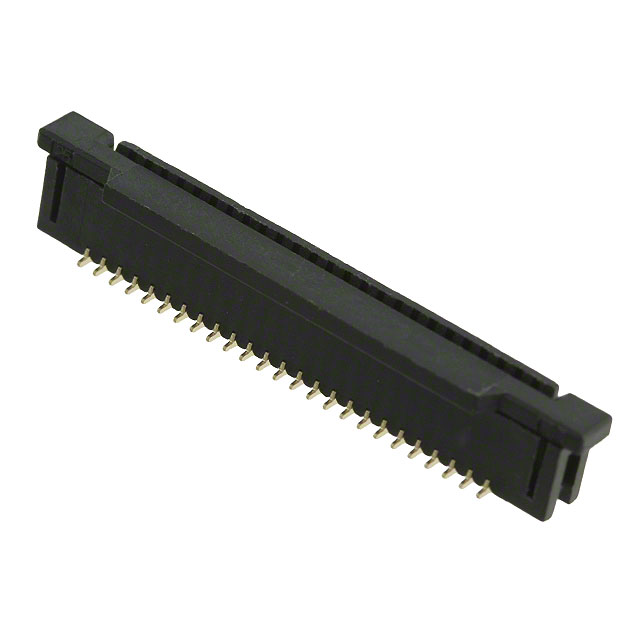

TE CONNECTIVITY 2-1734248-5 连接器, FPC, 母 25路 1MM
25 位置 FPC 触头,垂直 - 单侧 0.039"(1.00mm) 表面贴装型
得捷:
CONN FPC VERT 25POS 1MM SMD
e络盟:
连接器, FPC, 母 25路 1MM
艾睿:
Look no further than fpc connector 2-1734248-5 flexible flat cable from TE Connectivity, the perfect solution for embedding a greater number of electrical lines within a tightly constrained space. This is a 1-row connector. Its pitch is 1 mm. It has a maximum voltage rating of 125 VDC. It has a straight body orientation. This socket type connector&s;s 25 contacts that are made out of phosphor bronze and plated with gold over nickel. This device has a maximum current rating of 1 A/contact. This component will be shipped in tape and reel packaging to allow for effective mounting and safe delivery. This product is 32.4 mm long, 7.7 mm tall and 3.9 mm deep. This flexible flat cable has an operating temperature of -20 to 85 °C. 2-1734248-5 is housed in black thermoplastic. It uses the solder termination method.
安富利:
Conn FPC Connector SKT 25 POS 1mm Solder ST SMD T/R
Chip1Stop:
Conn FPC Connector SKT 25 POS 1mm Solder ST SMD T/R
Verical:
Conn FPC Connector SKT 25 POS 1mm Solder ST SMD T/R
Newark:
# TE CONNECTIVITY 2-1734248-5 FFC / FPC Board Connector, 1 mm, 25 Contacts, Receptacle, FPC Series, Surface Mount
MASTER:
1.0mm FPC ZIP Vertical, SMT
Powell:
FPC Connectors
Online Components:
1.0 FPC, ZIF V/T, SMT, 25P
Electro Sonic:
1.0 FPC, ZIF V/T, SMT, 25P
触点数 25
极性 Female
触点电镀 Gold
额定电流 1 A
排数 2
方向 Vertical
针脚数 25
屏蔽 No
额定电流Max 1A/触头
工作温度Max 85 ℃
工作温度Min -20 ℃
额定电压Max 125 VDC
额定电压 125 V
安装方式 Surface Mount
封装 SMD
长度 32.4 mm
宽度 3.9 mm
高度 7.7 mm
封装 SMD
外壳颜色 Black
触点材质 Phosphor Bronze
工作温度 -20℃ ~ 85℃
外壳材质 Nylon
产品生命周期 Active
包装方式 Tape & Reel TR
制造应用 Signal
RoHS标准 RoHS Compliant
含铅标准 Lead Free
ELV标准 Compliant
ECCN代码 EAR99
HTS代码 8536694040
