229974-1

AMP FROM TE CONNECTIVITY  229974-1  输入输出连接器, Champ-Lok系列, I/O, 插头, 50 触点, IDC / IDT, 电缆安装

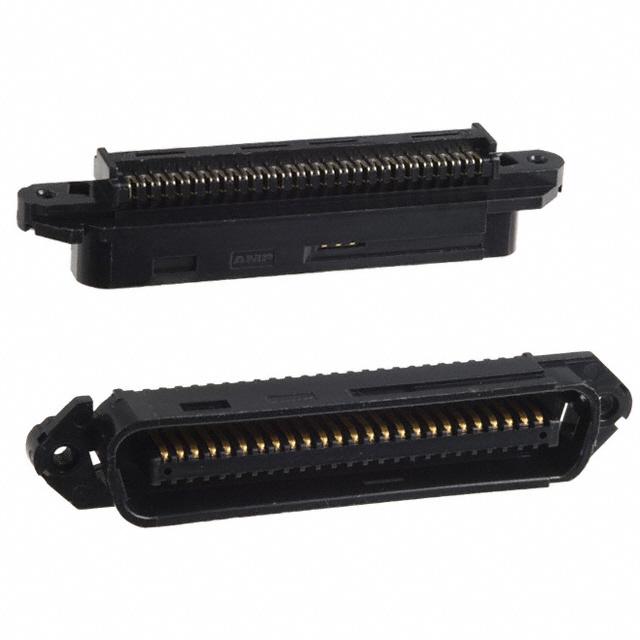

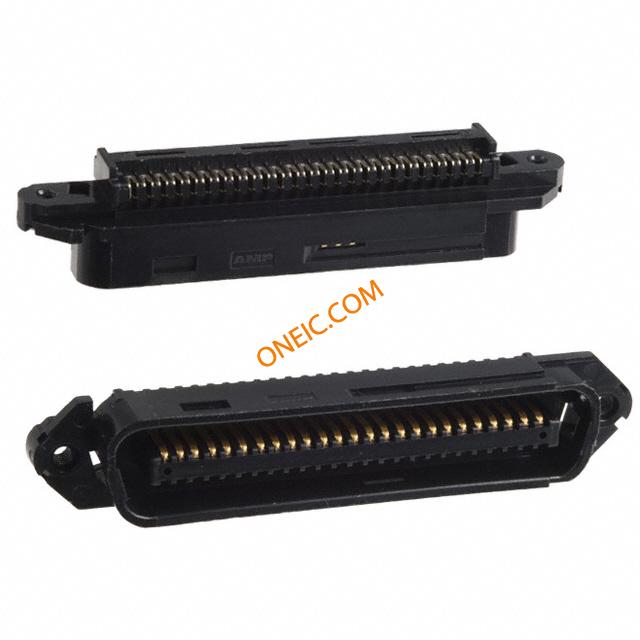

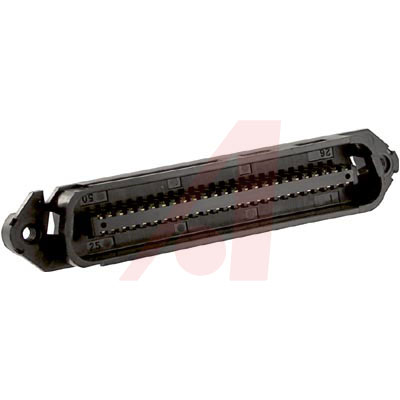

The is a 50-position B-slot standard IDC Plug Assembly with gold-plated copper alloy contacts, blue thermoplastic housing and screw locks mating connector lock. This Champ-Lok series D-sub connector is suitable for 7-strand/solid cable.

.

4-40 UNC 2B Thread

得捷:
CONN PLUG 50POS STR IDC

欧时:
ASSY, PLUG, 50 POS, B SLOT

立创商城:
229974-1

e络盟:
输入输出连接器, Champ-Lok系列, I/O, 插头, 50 触点, IDC / IDT, 电缆安装

艾睿:
Provide the best user experience by interfacing I/O into a design with this ieee 488 229974-1 interface connector from TE Connectivity. This PL connector&s;s 50 contacts that are made out of copper alloy and plated with gold over nickel|gold over palladium nickel over nickel. This connector has a single port. Its pitch is 2.16 mm. It has a plug type gender. It has a right angle body orientation. It has a maximum voltage rating of 250 VAC. 229974-1 is housed in thermoplastic. The item will be shipped in tray orientation. This interface connector has an operating temperature range of -40 °C to 75 °C. Its 50 terminals use the idt termination method. This product is 83.32 mm long, 17.53 mm tall and 15.37 mm deep.

Allied Electronics:
Connector, IDC; 50-Pin Plug; Unshielded; 4-40 Holes; B-Slot; RoHS

安富利:
Conn IEEE 488 PL 50 POS 2.16mm IDT RA Cable Mount 50 Terminal 1 Port Tray

Chip1Stop:
Conn IEEE 488 PL 50 POS 2.16mm IDT RA Cable Mount 50 Terminal 1 Port Tray

Verical:
Conn IEEE 488 PL 50 POS 2.16mm IDT RA Cable Mount 50 Terminal 1 Port Automotive Tray

Newark:
# AMP - TE CONNECTIVITY  229974-1  I/O Connector, 50 Contacts, Plug, I/O, IDC / IDT, Champ-Lok Series, Cable Mount

MASTER:
I/O Connector - 50 Contacts - Plug - IDC / IDT - Champ-Lok Series - Cable Mount.

Powell:
2.16 [.085] IDC Connectors

Online Components:
ASSY, PLUG, 50 POS, B SLOT

ICbanQ:
I/O Connectors PLUG 50P SCREW LOCK thick flange

Electro Sonic:
I/O Connector - 50 Contacts - Plug - IDC / IDT - Champ-Lok Series - Cable Mount.
