2311-V-RC

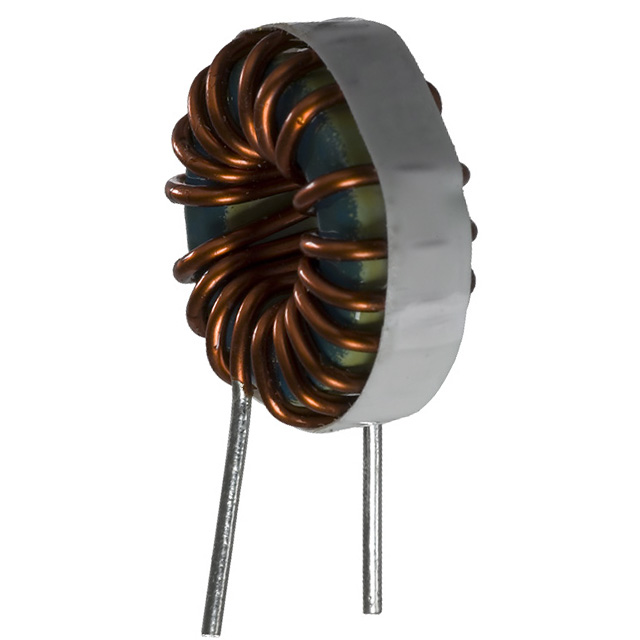

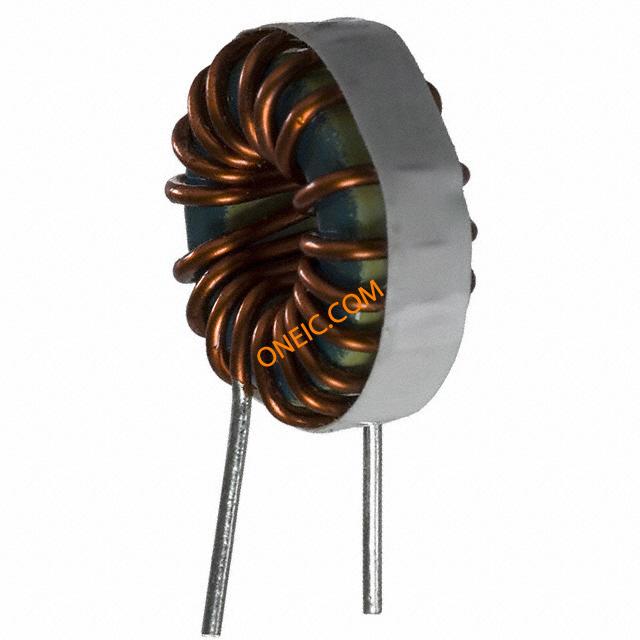

Inductor High Current Toroid 68uH/45.2uH 15% 1kHz 7.7A 30mOhm DCR RDL

无屏蔽 环形 器 30 毫欧最大 径向，垂直（开放式）

得捷:
FIXED IND 68UH 7.7A 30 MOHM TH

立创商城:
68uH ±15% 7.7A 30mΩ

艾睿:

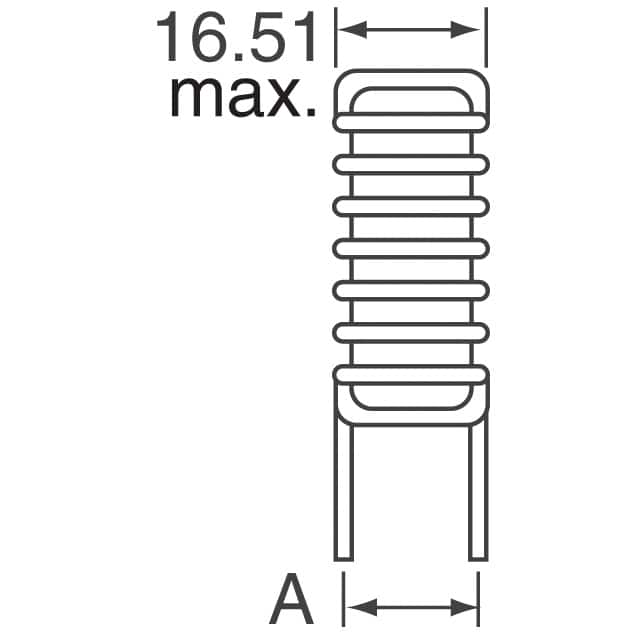

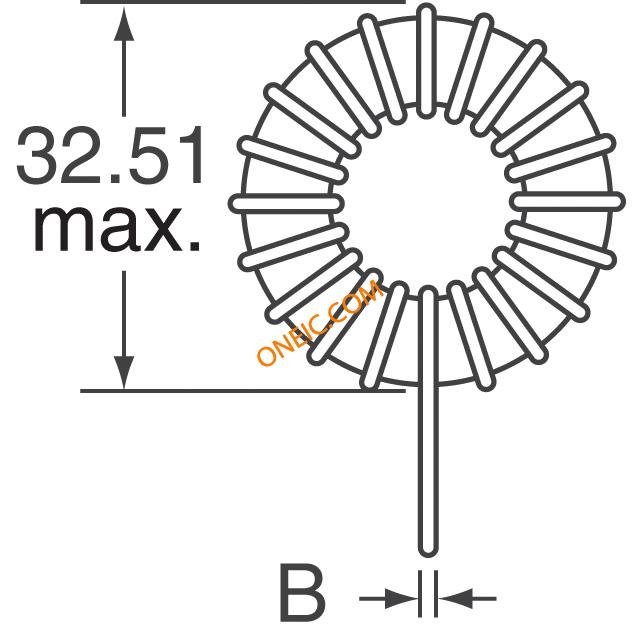

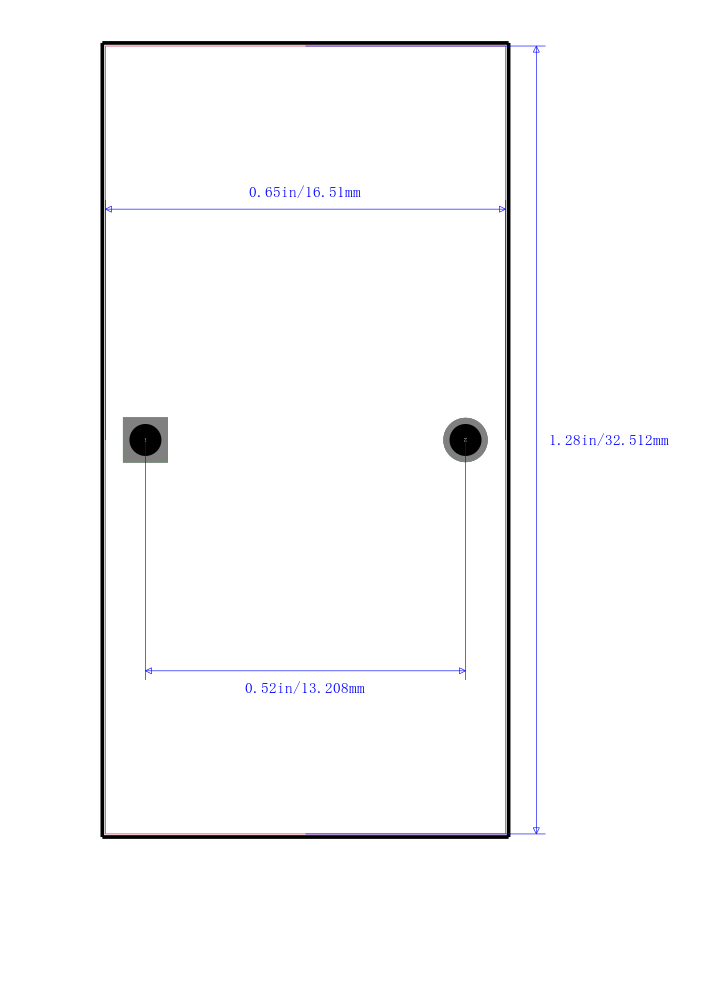

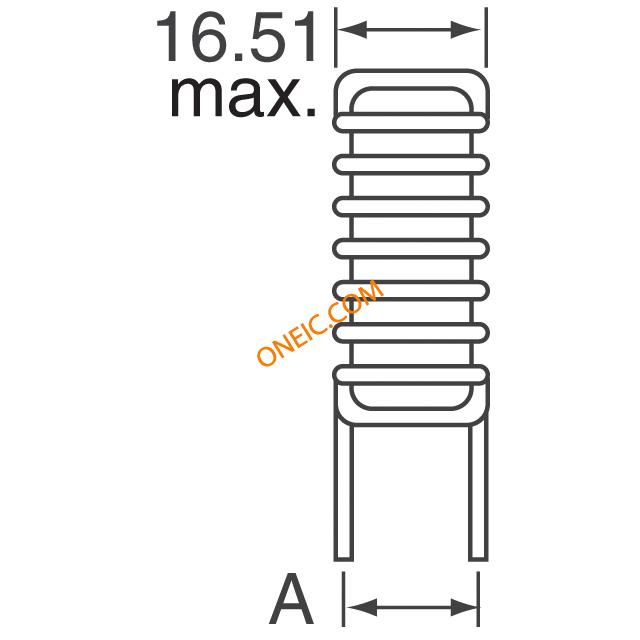

If you need a convenient and easily removable inductor for your electrical design then consider this high current 2311-V-RC leaded inductor from Bourns. This part has a pitch of 13.21 mm. This leaded inductor has an operating temperature range of -55 °C to 105 °C. This product is 16.51 mm deep. It has a tolerance of 15%. Its test frequency is 1K Hz. It has an inductance of 68u/45.2uRated H. This device utilizes toroid technology. This leaded inductor has a maximum DC current of 7.7 A with a maximum resistance of 30m Ohm.

安富利:
Ind High Current Toroid 68uH 15% 1KHz 7.7A RDL

Verical:
Inductor High Current Toroid 68uH/45.2uH 15% 1KHz 7.7A 0.03Ohm DCR RDL

Newark:
# BOURNS JW MILLER  2311-V-RC  Inductor, Toroidal, High Current, 2300 Series, 68 µH, 7.7 A, 0.03 ohm, ± 15%

MASTER:
Inductor High Current Toroid 68uH/45.2uH 15% 1KHz 7.7A 30mOhm DCR RDL

Electro Sonic:
Inductor High Current Toroid 68uH/45.2uH 15% 1KHz 7.7A 30mOhm DCR RDL
