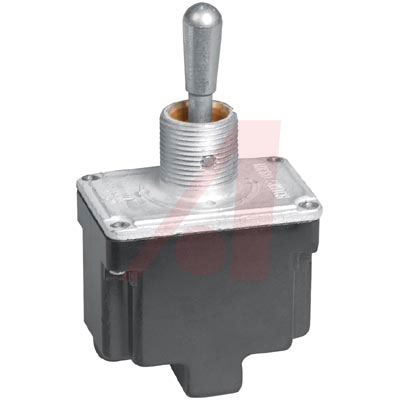

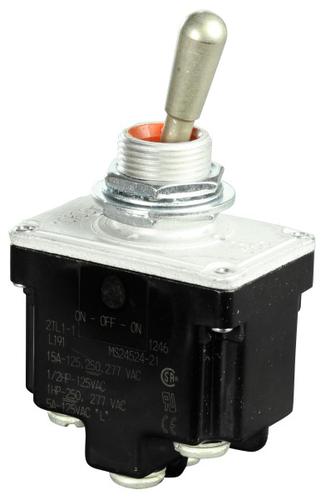

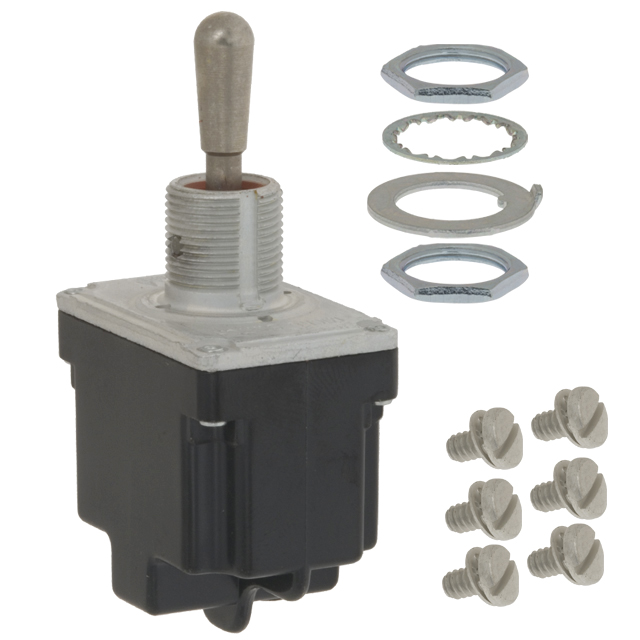

HONEYWELL 2TL1-1 拨动开关, TL系列, 不发光, DPDT, 开-关-开, 面板, 15 A
"s low-energy TL Series toggle switches were introduced to give designers the option of gold-plated contacts for switching “non-arching” loads. A range of circuitry, sealing levels and sizes provide even more options to maximize flexibility and enhance performance. This popular product line is UL recognized, CSA certified and CE approved as well as customer lauded.
TL toggle switches from Honeywell feature:
* Silver and/or gold-plated contacts for increased application flexibility
* High strength for durability in tough conditions
* Temperature resistant materials to enhance performance in challenging environments
* Non-tracking case material
* Quality at a competitive price
额定电压DC 250 V
接触器类型 Standard
额定电压AC 277 V
额定电流 15 A
方向 Vertical
触点类型 DPDT
针脚数 3
额定电流Max 20A @28VDC
工作温度Max 71 ℃
工作温度Min -65 ℃
额定电压 125 VAC
安装方式 Panel, Screw Terminals
长度 33.5 mm
宽度 22.6 mm
高度 29.46 mm
触点材质 Silver Cadmium Oxide
工作温度 -65℃ ~ 71℃
产品生命周期 Active
制造应用 Industrial, 测试与测量, 医用, Test & Measurement, Medical, Automation & Process Control, Agriculture, Aerospace, Defence, Military, 军用与航空, 农业, 国防, 工业, 自动化与过程控制, 商业, Commercial, 国防, 军用与航空
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
军工级 Yes
ECCN代码 EAR99
HTS代码 8536509065
| 型号/品牌 | 代替类型 | 替代型号对比 |
|---|---|---|
2TL1-1 Honeywell 霍尼韦尔 | 当前型号 | 当前型号 |
8501K1 赛峰 | 类似代替 | 2TL1-1和8501K1的区别 |
