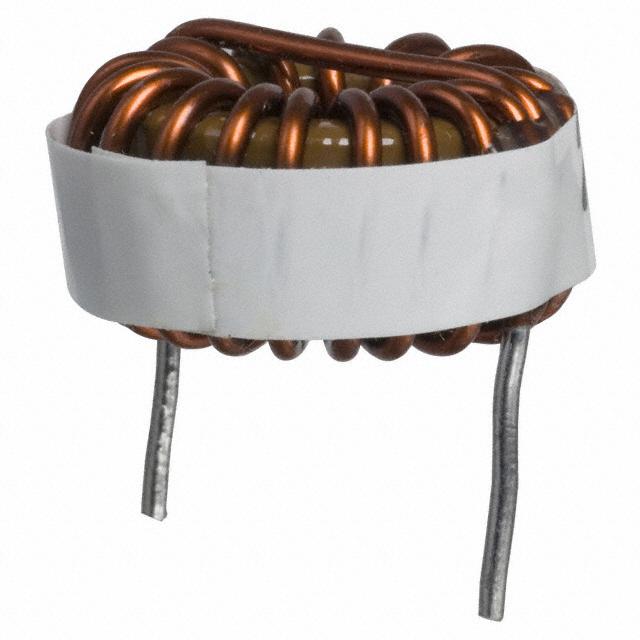

2301-H-RC

BOURNS JW MILLER  2301-H-RC  螺旋管电感, 10uH, 15%容差

无屏蔽 环形 器 5 毫欧最大 径向，水平（开放式）

得捷:
FIXED IND 10UH 20A 5 MOHM TH

立创商城:
10uH ±15% 20A 5mΩ

e络盟:
螺旋管电感, 10uH, 15%容差

艾睿:

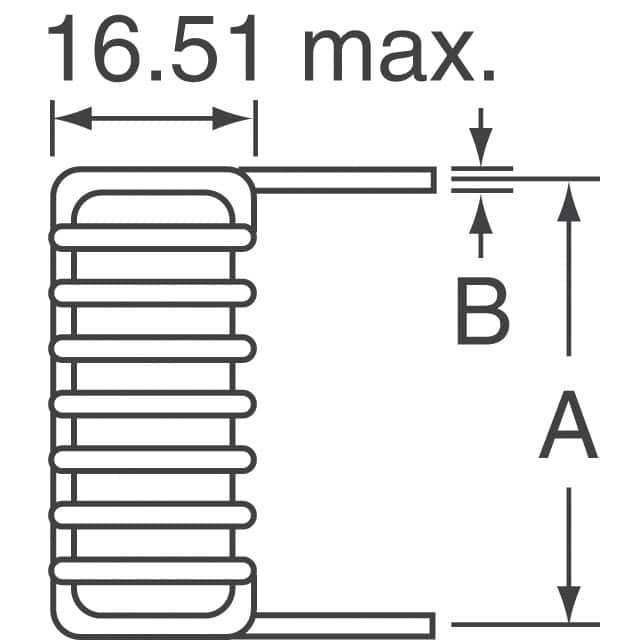

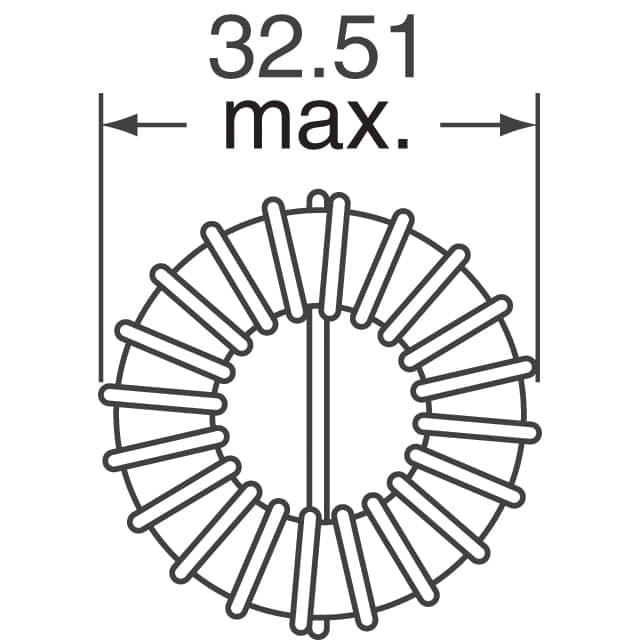

This high current 2301-H-RC leaded inductor from Bourns is convenient and easily removable. This part has a pitch of 29.97 mm. This leaded inductor has an operating temperature range of -55 °C to 105 °C. Its test frequency is 1K Hz. This device utilizes toroid technology. It has an inductance of 10u/6.7uRated H. It has a tolerance of 15%. This product is 16.51 mm tall with a diameter of 32.51 mm. This leaded inductor has a maximum DC current of 20 A with a maximum resistance of 5m Ohm.

安富利:
Ind High Current Toroid 10uH 15% 1KHz 20A RDL

Chip1Stop:
Ind High Current Toroid 10uH 15% 1KHz 20A RDL

Verical:
Inductor High Current Toroid 10uH/6.7uH 15% 1KHz 20A 0.005Ohm DCR RDL

Newark:
# BOURNS JW MILLER  2301-H-RC  Inductor, Toroidal, High Current, 2300 Series, 10 µH, 20 A, 5000 µohm, ± 15%

MASTER:
Inductor High Current Toroid 10uH/6.7uH 15% 1KHz 20A 5mOhm DCR RDL

Electro Sonic:
Inductor High Current Toroid 10uH/6.7uH 15% 1KHz 20A 5mOhm DCR RDL
