HARAX® M12-L, screened versionHARAX® quick connection universal technology is an ideal solution for the in situ assembly of M12 connectors and does not require the use of special tools.IP 67 protection Termination cycles 10 with same cross section Cable diameters 7 → 8.8 mm Conductor diameter 1.2 → 1.6 mm 26 - 22 AWG ### HARAX® 连接器HARTING HARAX® 快速连接通用技术是 M8/M12 连接器现场组件的理想解决方案，且无需使用特殊工具。 用户仅需剥离电缆绝缘、插入导线并旋紧连接器，就能构成防气和抗震连接。

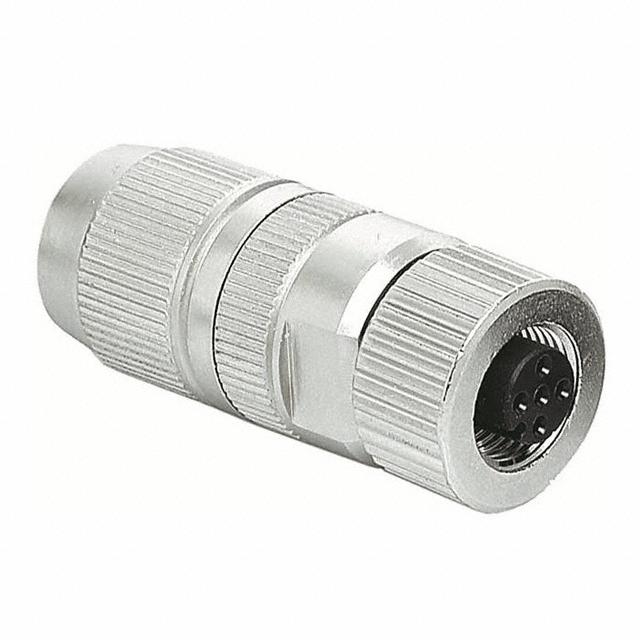

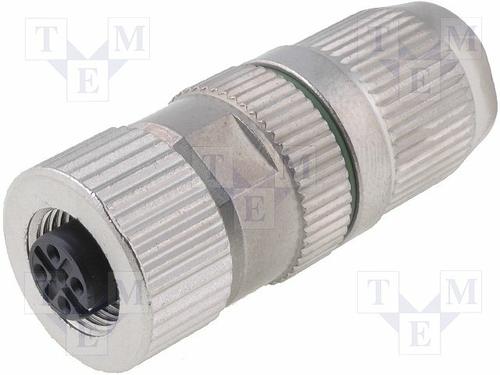

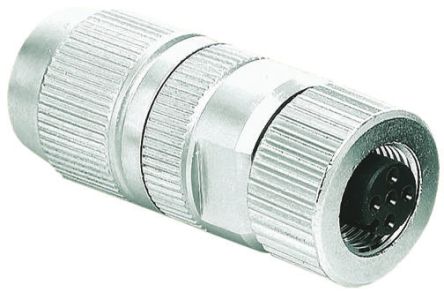

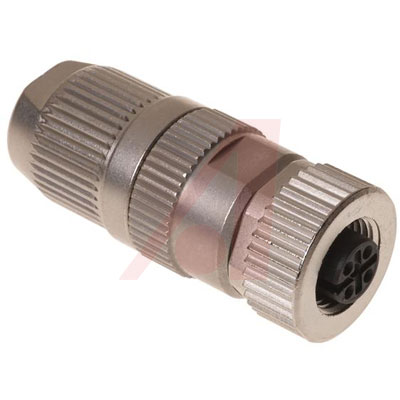

HARAX® M12-L，屏蔽型
HARAX® 快速链接通用技术是 M12 现场组件的理想解决方案，且无需使用特殊工具。
IP67 保护等级
端接周期 10（相同的截面）
电缆直径 7 → 8.8 mm
导体直径 1.2 → 1.6 mm 26 - 22 AWG
### HARAX® 连接器
HARTING HARAX® 快速连接通用技术是 M8/M12 连接器现场组件的理想解决方案，且无需使用特殊工具。 用户仅需剥离电缆绝缘、插入导线并旋紧连接器，就能构成防气和抗震连接。
欧时:
4路 直向 圆形连接器 插座触点
得捷:
CONN RCPT FMALE 4POS GOLD IDC
艾睿:
This 21032212405 connector from Harting is extremely useful for connecting circular peripherals to your device. It has a straight body orientation. This female connector has 4 female contacts. This device has a maximum current rating of 4 A. It uses the screw termination method. This circular connector has an operating temperature of -25 to 85 °C. This product is 48.8 mm long with a diameter of 20.5 mm.
Allied Electronics:
Circular Connector w. Harax M12 L 4 F
TME:
Plug; M12; PIN:4; female; A code-DeviceNet / CANopen; for cable
