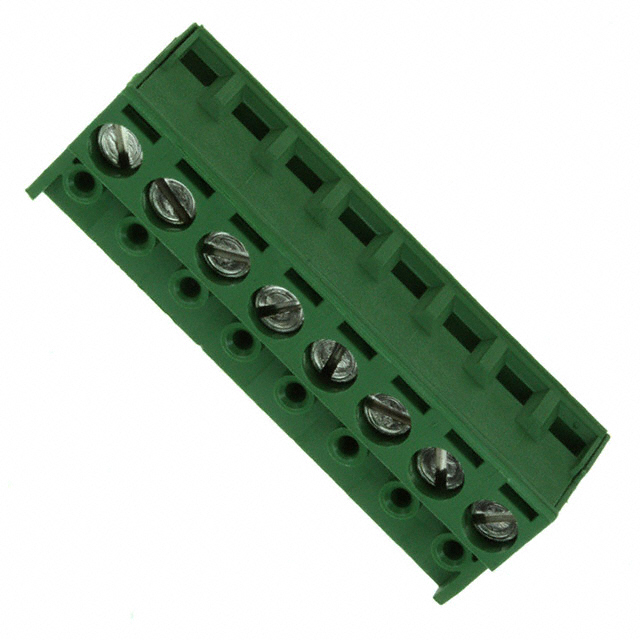

282830-8

可插拔接线端子 TERMI-BLOK PLUG 90&180 8P. 5

8 针位端子块 无罩接头的插头 0.197"（5.00mm） - 90° 自由悬挂

得捷:
TERM BLOCK PLUG 8POS 90DEG 5MM

贸泽:
可插拔接线端子 TERMI-BLOK PLUG 90&180 8P. 5

艾睿:
Need to ensure strong connections between circuits? This eurostyle block 282830-8 PCB terminal block from TE Connectivity will do just that! This F connector&s;s 8 contacts that are made out of phosphor bronze/brass and plated with tin/nickel. This is a 1-row connector. It has a maximum voltage rating of 300 VAC. It has a straight/right angle body orientation. Its pitch is 5 mm. It has a female type gender. 282830-8 is housed in polyamide 6/6. This device has a maximum current rating of 12 A/contact. This quick disconnect terminal has an operating temperature of -40 to 105 °C. Its wire is 12-30 AWG. It uses the screw termination method. This product is 40 mm long, 11.5 mm tall and 13.9 mm deep.

安富利:
Conn Terminal Block F 8 POS 5mm Screw Straight/Right Angle Cable Mount 12A/Contact

Verical:
Conn Eurostyle Block F 8 POS 5mm Screw Straight/Right Angle Cable Mount 12A/Contact Carton

Newark:
# AMP - TE CONNECTIVITY  282830-8  TERMI-BLOK PLUG 90180 8P. 5 New

MASTER:
TERMINAL BLOCK PLUG 90/180 DEGREE, STRIGHT SIDE STACKABLE, 5.0mm PITCH

Powell:
Terminal Block Connectors

Online Components:
TERMI-BLOK PLUG 90&180 8P. 5

Electro Sonic:
TERMI-BLOK PLUG 90&180 8P. 5
