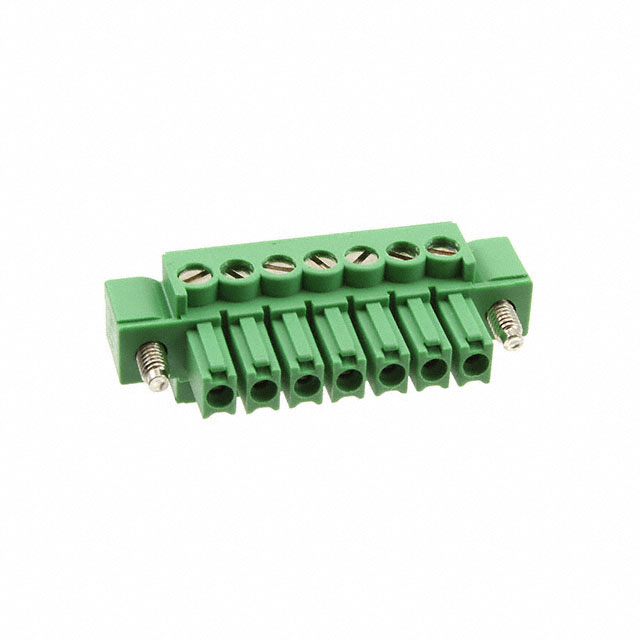

284510-7

Conn Terminal Block PL 7POS 3.5mm Solder RA Thru-Hole 11A/Contact

7P TERMI-BLOK PLUG CON VITI

得捷:
TERM BLOCK PLUG 7POS STR 3.5MM

艾睿:
Keep your connections strong with this eurostyle block 284510-7 PCB terminal block from TE Connectivity utilizing clamps and screws. This PL connector&s;s 7 contacts that are made out of phosphor bronze/brass and plated with tin/nickel. It has a plug type gender. It has a maximum voltage rating of 300 VAC. It has a right angle body orientation. Its pitch is 3.5 mm. This is a 1-row connector. This device has a maximum current rating of 11 A/contact. 284510-7 is housed in polyamide 6/6. This quick disconnect terminal has an operating temperature of -40 to 105 °C. Its wire is 14-30 AWG. This product is 30 mm long, 11.1 mm tall and 15.5 mm deep. It uses the solder termination method.

安富利:
Conn Terminal Block PL 7 POS 3.5mm Solder RA Thru-Hole 11A/Contact

Chip1Stop:
Conn Eurostyle Block PL 7 POS 3.5mm Solder RA Thru-Hole 11A/Contact Carton

Verical:
Conn Eurostyle Block PL 7 POS 3.5mm Solder RA Thru-Hole 11A/Contact Carton

Powell:
Terminal Block Connectors

Online Components:
7P TERMI-BLOK PLUG CON VITI

Electro Sonic:
7P TERMI-BLOK PLUG CON VITI
