2313-H-RC

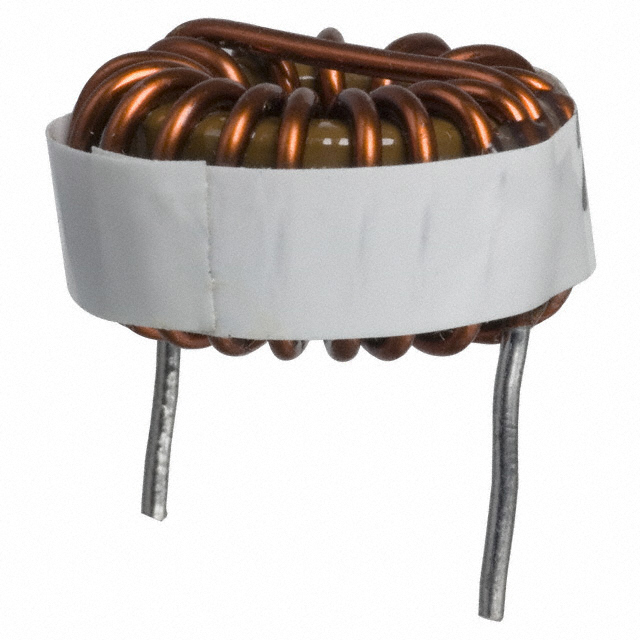

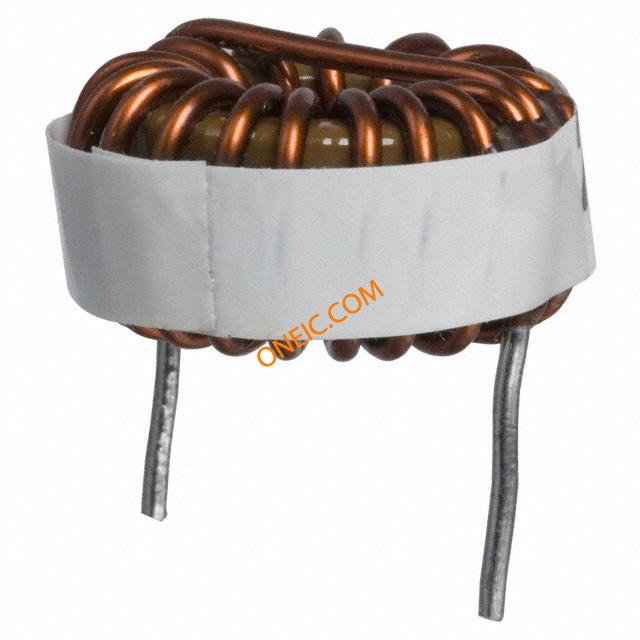

Inductor High Current Toroid 120uH/73.9uH 15% 1kHz 6.7A 40mOhm DCR RDL

无屏蔽 环形 器 40 毫欧最大 径向，水平（开放式）

得捷:
FIXED IND 120UH 6.7A 40 MOHM TH

立创商城:
120uH ±15% 6.7A 40mΩ

艾睿:

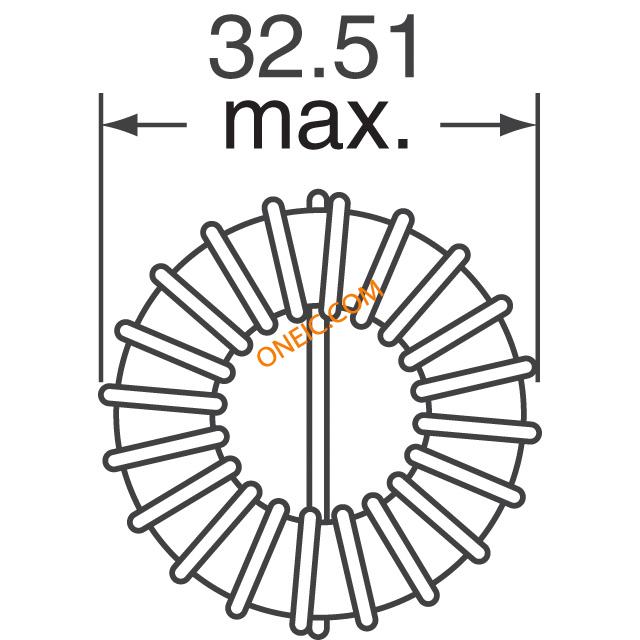

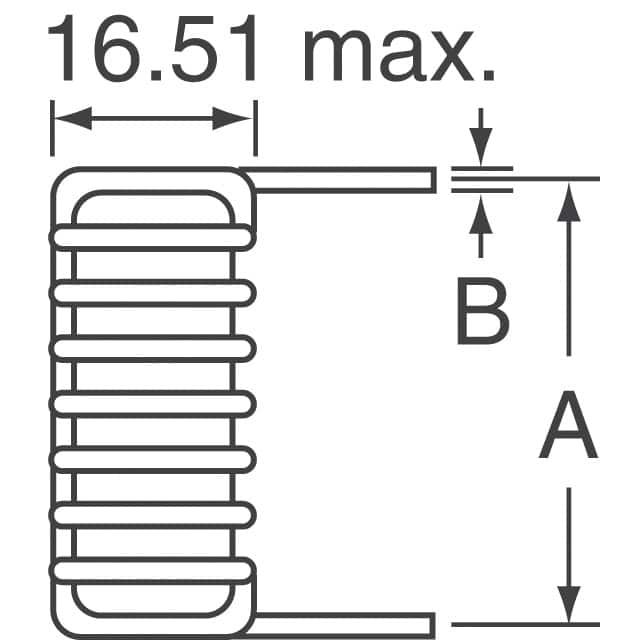

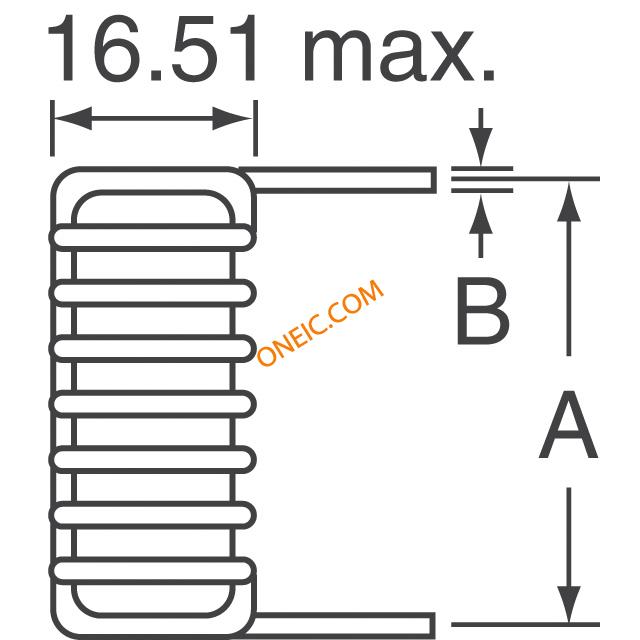

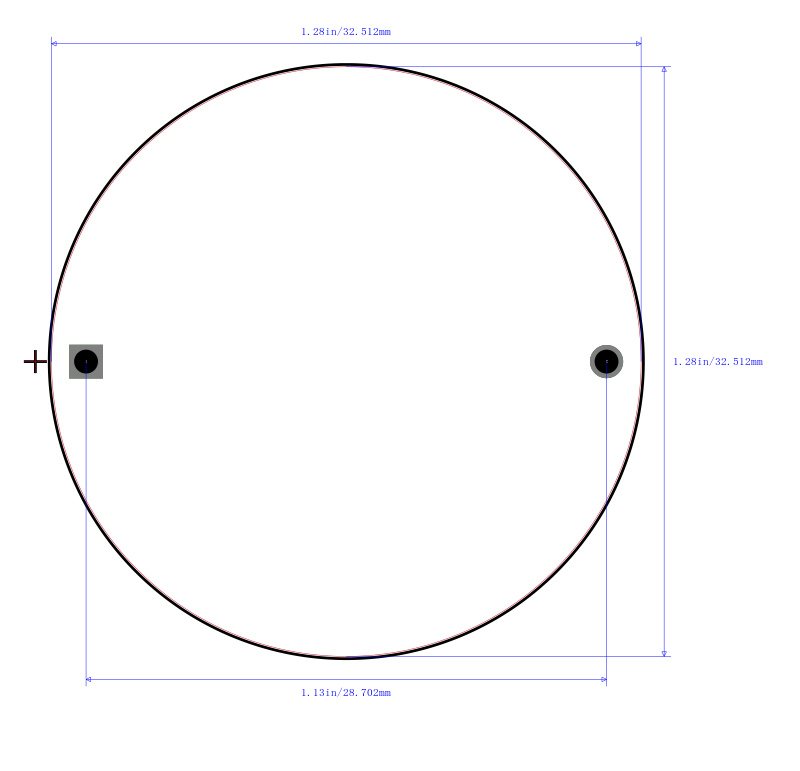

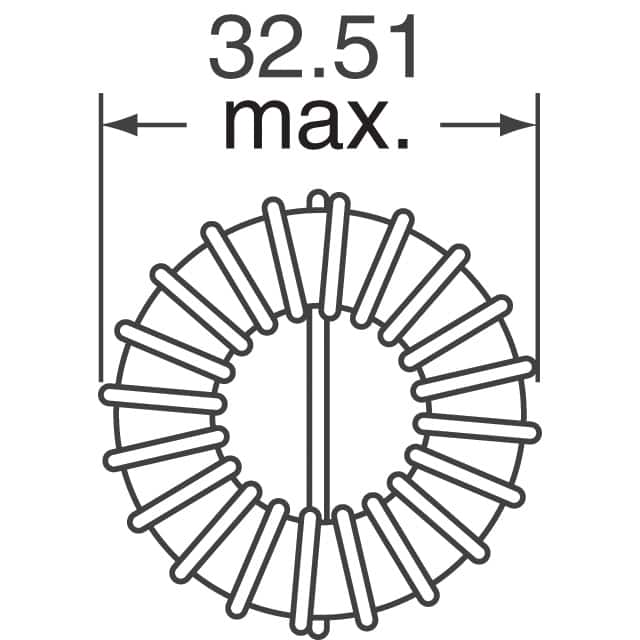

This high current 2313-H-RC leaded inductor from Bourns is very suitable for tape and reel packaging for auto placement. This part has a pitch of 28.7 mm. This leaded inductor has an operating temperature range of -55 °C to 105 °C. It has an inductance of 120u/73.9uRated H. This leaded inductor has a maximum DC current of 6.7 A with a maximum resistance of 40m Ohm. It has a tolerance of 15%. Its test frequency is 1K Hz. This device utilizes toroid technology. This product is 16.51 mm tall with a diameter of 32.51 mm.

安富利:
Ind High Current Toroid 120uH 15% 1KHz 6.7A RDL

Verical:
Inductor High Current Toroid 120uH/73.9uH 15% 1KHz 6.7A 0.04Ohm DCR RDL

Newark:
# BOURNS JW MILLER  2313-H-RC  Inductor, Toroidal, High Current, 2300 Series, 120 µH, 6.7 A, 0.04 ohm, ± 15%

MASTER:
Inductor High Current Toroid 120uH/73.9uH 15% 1KHz 6.7A 40mOhm DCR RDL

Electro Sonic:
Inductor High Current Toroid 120uH/73.9uH 15% 1KHz 6.7A 40mOhm DCR RDL
