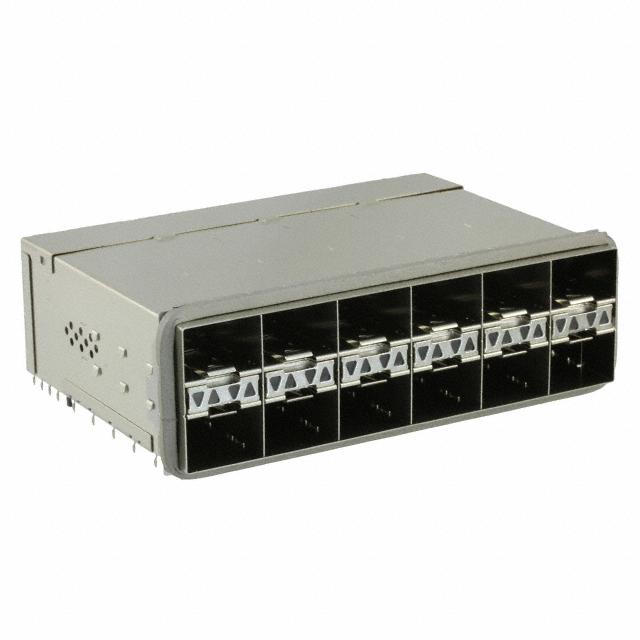

2198339-2

Conn zSFP+ RCP 240POS 2.4mm Press Fit RA Thru-Hole 240 Terminal 12Port Tray

240（20 x 12） 位置 zSFP+ 带机架的插座，成组（2x6） 压配 通孔，直角

得捷:
CONN ZSFP+ RCPT CAGE 2X6 240P RA

艾睿:
Have a telecom or phone line? This zsfp+ 2198339-2 telephone and telecom connector manufactured from TE Connectivity will make a solid connection. This RCP connector&s;s 240 contacts that are made out of copper alloy and plated with gold|gold over palladium nickel. It has a right angle body orientation. This connector has 12 ports. It has a maximum voltage rating of 120 VAC. It has a receptacle type gender. Its pitch is 2.4 mm. This device has a maximum current rating of 0.5 A/contact. The item will be shipped in tray orientation. It uses the press fit termination method. This part has an operating temperature of -40 to 85 °C. This product is 29.7 mm tall. 2198339-2 is housed in black liquid crystal polymer.

安富利:
Conn SFP RCP 240 POS Press Fit RA Thru-Hole 240 Terminal 12 Port Box/Carton

Verical:
Conn zSFP+ RCP 240 POS 2.4mm Press Fit RA Thru-Hole 240 Terminal 12 Port Tray

Newark:
I/O Connector, 240 Contacts, Receptacle, I/O, Press Fit, zSFP+ Series, PCB Mount

MASTER:
Conn zSFP+ RCP 240 POS 2.4mm Press Fit RA Thru-Hole 240 Terminal 12 Port Tray

Online Components:
zSFP+ STACKED 2X6 RECEPTACLE ASSEMBLY

Electro Sonic:
zSFP+ STACKED 2X6 RECEPTACLE ASSEMBLY
