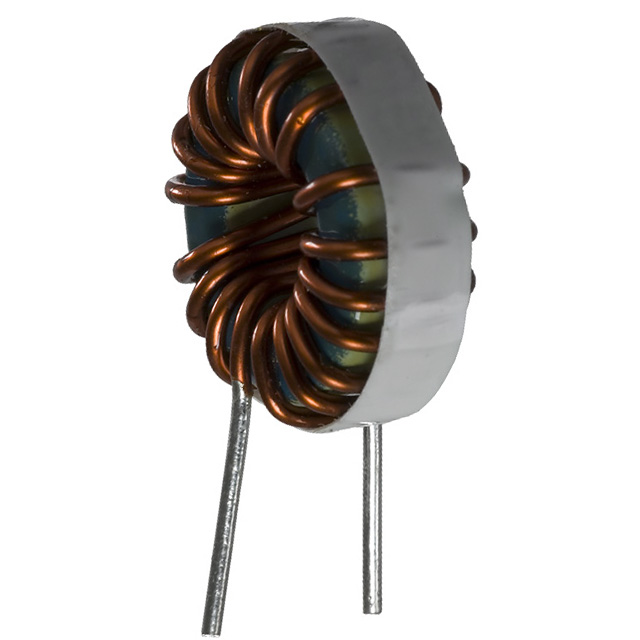

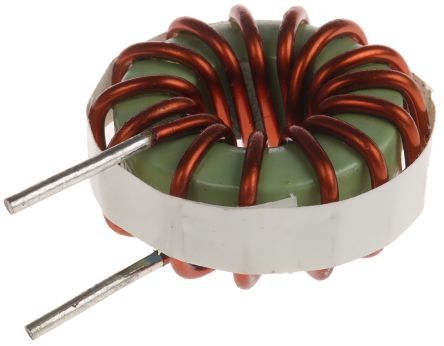

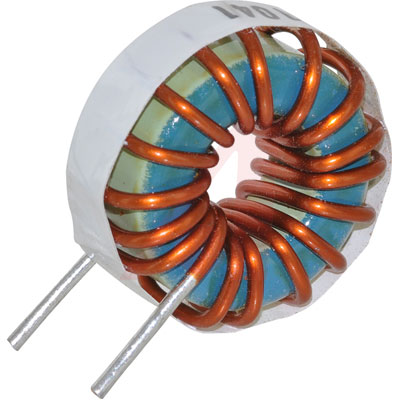

2305-V-RC

BOURNS  2305-V-RC  螺线电感, 竖直安装, 22uH, 15%, 16.4A

Bourns 2300 系列径向扼流圈

直流/直流转换器，EMI 滤波器应用

低辐射

低磁芯损耗

高电流容量

水平或重直安装

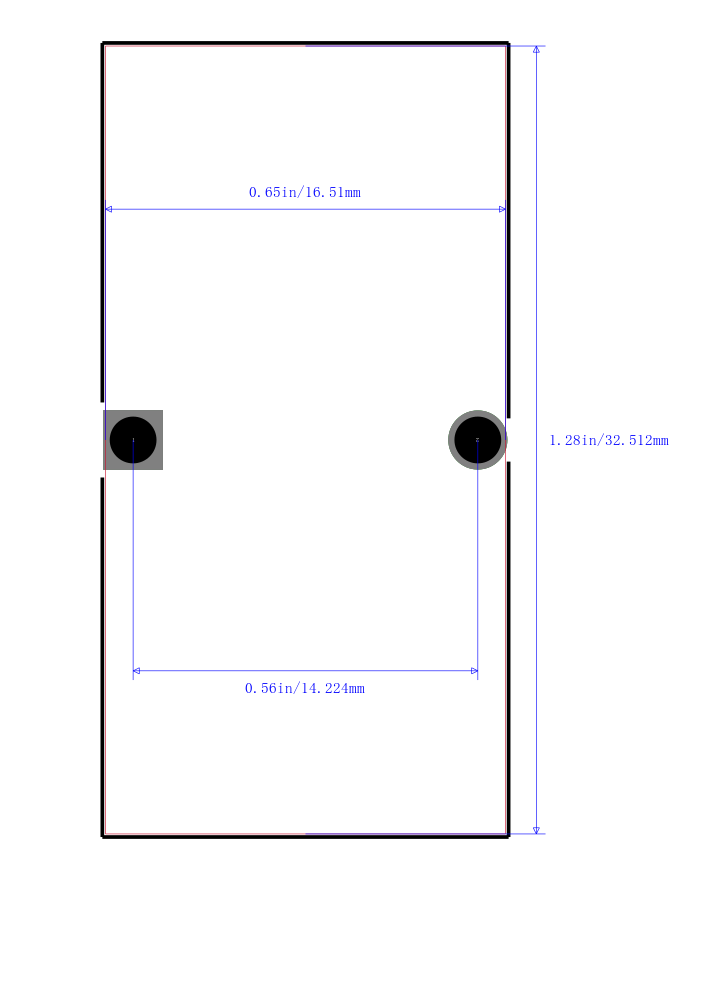

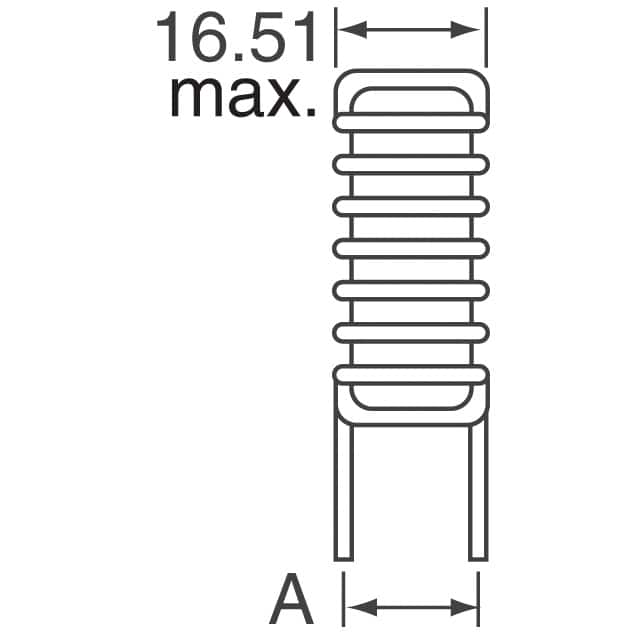

产品尺寸：外径 32.5mm，厚 16.5mm

工作温度 -55 至 +105°C

得捷:
FIXED IND 22UH 16.4A 7 MOHM TH

欧时:
Bourns 2300 系列 22 μH ±15% 2305-V-RC 引线型电感器, 16.4A Idc, 7mΩ Rdc, 32.51mm直径

贸泽:
Fixed Inductors 22uH 15% Vertical

e络盟:
环形电感, 高电流, 2300系列, 22 µH, 16.4 A, 0.007 ohm, ± 15%

艾睿:
Inductor High Current Toroid 22uH/13.2uH 15% 1KHz 16.4A 0.007Ohm DCR RDL

Allied Electronics:
Inductor; High Current Toroidal; 22uH; 0.007 Ohm DCR Max; Vertical Mount

安富利:
Ind High Current Toroid 22uH 15% 1KHz 16.4A RDL

Chip1Stop:
Inductor High Current Toroid 22uH/13.2uH 15% 1KHz 16.4A 7mOhm DCR RDL

Verical:
Inductor High Current Toroid 22uH/13.2uH 15% 1KHz 16.4A 0.007Ohm DCR RDL

Newark:
# BOURNS JW MILLER  2305-V-RC  Inductor, Toroidal, High Current, 2300 Series, 22 µH, 16.4 A, 7000 µohm, ± 15%

MASTER:
Inductor High Current Toroid 22uH/13.2uH 15% 1KHz 16.4A 7mOhm DCR RDL

Electro Sonic:
Inductor High Current Toroid 22uH/13.2uH 15% 1KHz 16.4A 7mOhm DCR RDL
